Article No. 10325
RECYFIX POINT 30/30, Point drainage, class A 15
Extension frame with 2 bolt connection points
Available from stock
Questions?
Our experienced planning team will be happy to help you.
Get in touch

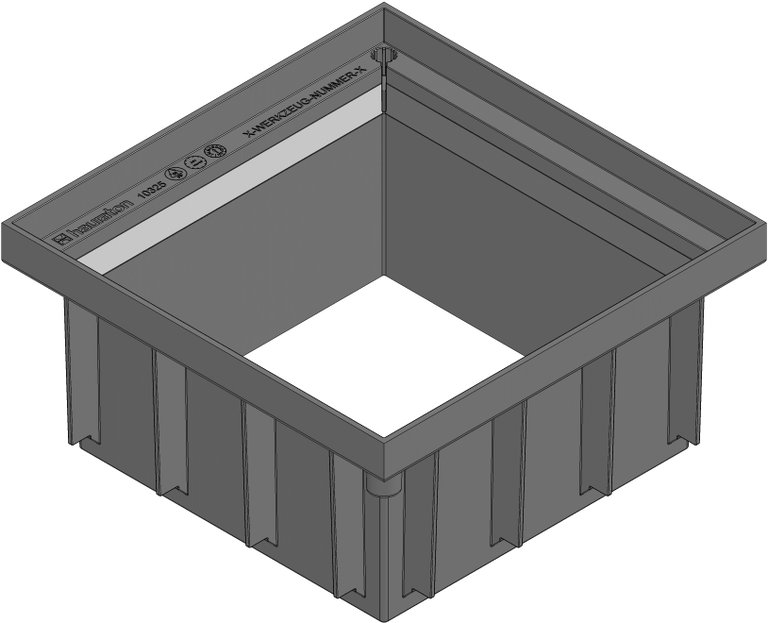

Product image
Technical drawing
Drawing (CAD)
Drawing
Technical information and metrics
Article No.
10325
Length
291 mm
Width
291 mm
Height
148 mm
Weight
0.63 kg
Material
recycled, modified Polypropylene
Regulations
EN 1433, DIN 19580
Sales text
Extension frame with 2 bolt connection points, increase of 106 mm, for RECYFIX POINT 30/30, construction height 300 mm
Product description
RECYFIX POINT 30/30, construction height 300 mm -Extension frame with 2 bolt connection points, made of modified PP, heigth 148 mm, increase of 106 mm, item no. 10325
Packaging unit
108
Declaration of Performance
