Article No. 10329
RECYFIX POINT 30/30, Point drainage, class B 125
Construction height 300 mm, with mesh grating MW 30/10 mm, galvanised
Available from stock
Questions?
Our experienced planning team will be happy to help you.
Get in touch

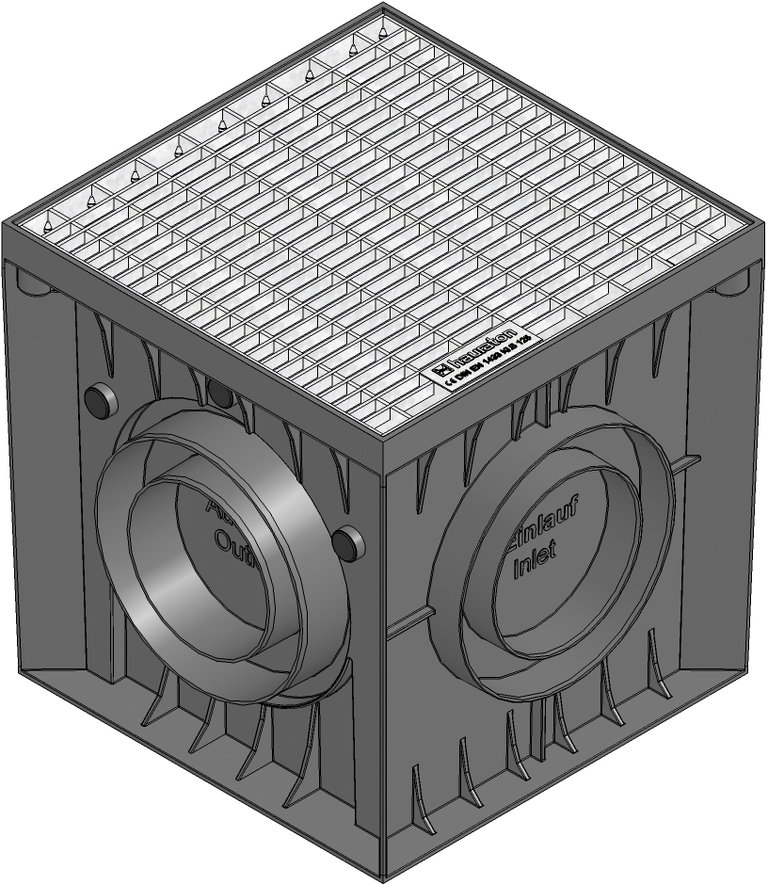

Product image
Technical drawing
Drawing (CAD)
Drawing
Data Sheet
Technical information and metrics
Article No.
10329
Length
291 mm
Width
291 mm
Height
300 mm
Weight
4.78 kg
Material
hot-dip galvanised steel, recycled, modified Polypropylene
Inlet opening
30 x 10 mm
Material grating
hot-dip galvanised steel
Regulations
EN 1433, DIN 19580
Sales text
RECYFIX POINT 30/30, installation height 300 mm, with mesh grating MW 30/10 mm, galvanised, cl. B 125, with silt bucket and foul air trap
Product description
RECYFIX POINT 30/30 - installation height 300 mm, made of modified PP, with mesh grating MW 30/10 mm, galvanised, with removable silt bucket and foul air trap, with lateral connection possibility DN/OD 110/160, loading capaciyt from A 15 - B 125, L/W/H 291x291x300 mm, item no. 10329
Packaging unit
36
Declaration of Performance
Tender Texts
Installation example
Pavement class A 15
Pavement class A 15
water-bound road surfaces class A 15
Pavement class A 15 - B 125
Pavement class A 15 - B 125
Asphalt class A 15 - C 250
Concrete class B 125 - C 250
Pavement class A 15 - C 250
water-bound road surfaces class A 15 - C 250
Pavement class C 250
Pavement class A 15 - C 250
Asphalt class A 15 - C 250
Concrete class B 125 - C 250
Pavement class C 250
Installation instructions
