Article No. 32617
RECYFIX POINT 30/30, Point drainage, class B 125
Construction height 450 mm ductile iron grating star design SW 12 mm, black
Available from stock
Questions?
Our experienced planning team will be happy to help you.
Get in touch

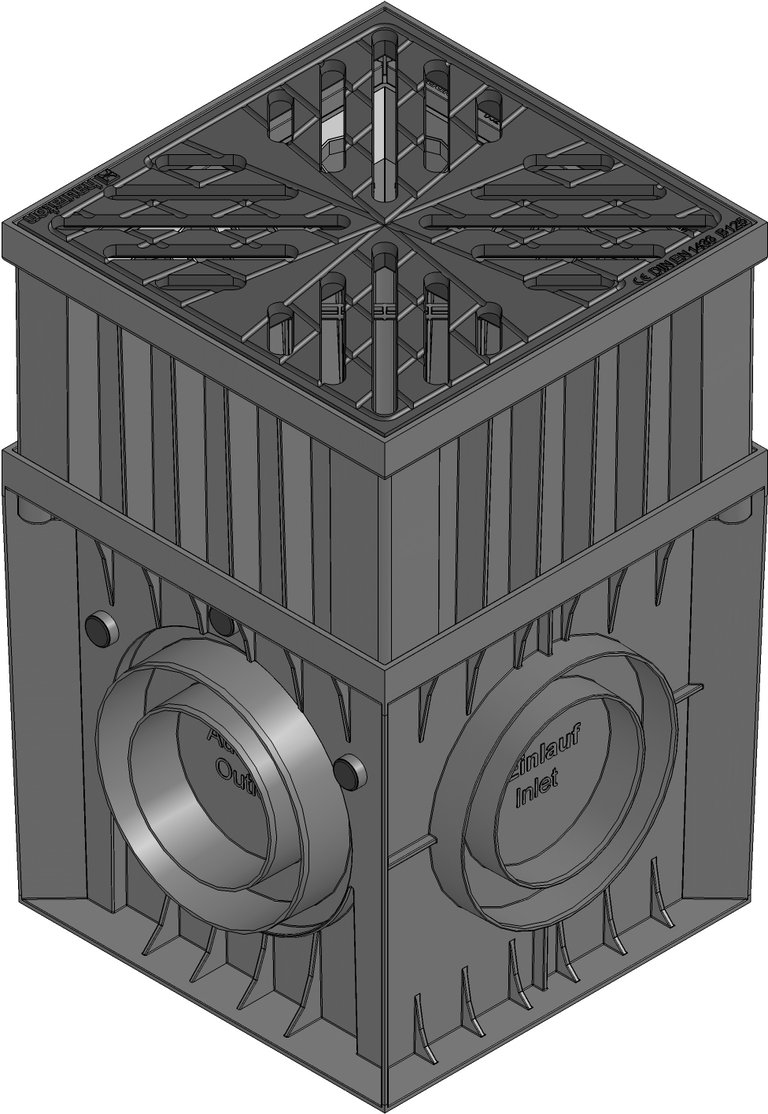

Product image
Technical drawing
Drawing
Drawing (CAD)
Data Sheet
Technical information and metrics
Article No.
32617
Length
291 mm
Width
291 mm
Height
450 mm
Weight
7.90 kg
Material
Ductile iron GJS 500-7
Nominal size
-
Inlet opening
12 x 0 mm
Material grating
Ductile iron GJS 500-7
Regulations
EN 1433
Sales text
RECYFIX POINT 30/30, installation height 450 mm, mwith ductile iron grating star design SW 12 mm, black, cl. B 125, with sludge trap bucket and foul air trap
Product description
RECYFIX POINT 30/30 - drainage point, installation height 450 mm, made of modified PP, with ductile iron grating made of spheroidal ductile iron GJS 500-7, star design, slot width 12 mm, black, with foul air trap and silt bucket, with lateral connection possibility DN/OD 110/160, loading capacity from A 15 - B 125, L/W/H 291x291x450 mm, item no. 32617
Packaging unit
24
Declaration of Performance
Tender Texts
Installation example
Pavement class A 15
Pavement class A 15
water-bound road surfaces class A 15
Pavement class A 15 - B 125
Pavement class A 15 - B 125
Asphalt class A 15 - C 250
Concrete class B 125 - C 250
Pavement class A 15 - C 250
water-bound road surfaces class A 15 - C 250
Pavement class C 250
Pavement class A 15 - C 250
Asphalt class A 15 - C 250
Concrete class B 125 - C 250
Pavement class C 250
Installation instructions
