Article No. 47032
RECYFIX PRO 100, class B 125
Type 75 with GUGI-Grating made of PA-GF, MW 15/25 mm, black, locked, 1,0 m
Available from stock
Questions?
Our experienced planning team will be happy to help you.
Get in touch

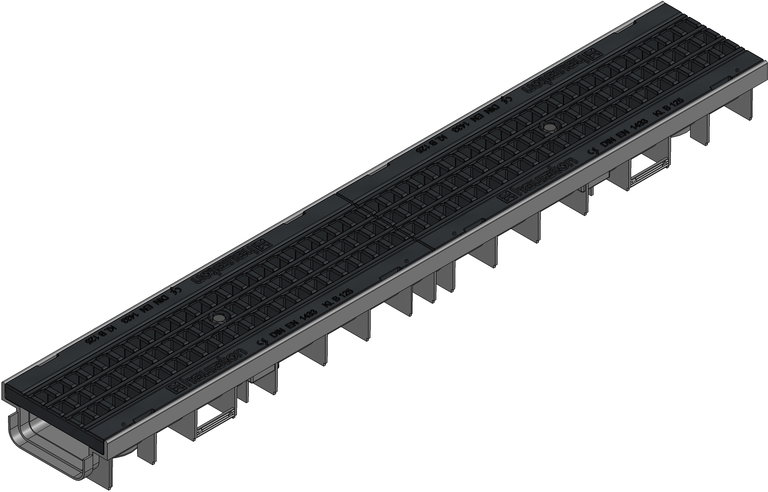

Product image
Top view
Technical drawing
Drawing (CAD)
Drawing
Data Sheet
Technical information and metrics
Article No.
47032
Length
1000 mm
Width
160 mm
Height
75 mm
Einlegetiefe
20 mm
Weight
2.94 kg
Material
recycled, modified Polypropylene, RECYFIX Material (recycled PA), reinforced Polyamide, Steel black galvanised
Intake cross-section
444.0 cm²/m
Nominal size
100
Internal channel cross-section
35 cm²
Regulations
M
Channel material
recycled, modified Polypropylene
Material grating
reinforced Polyamide
Regulations
EN 1433, DIN 51130, DIN 19580, EN 16165
Regulations
RECYFIX PRO 100 Channel type 75 with integrated edge frames, with GUGI-mesh grating made of composite MS 15/25 mm, black, cl. B 125, locked, 1 m
Regulations
RECYFIX PRO 100 type 75 - channel made of modified PP, with integrated angle housing, with vertical connection possibility DN/OD 75, with GUGI-mesh grating, mesh width 15/25, black, with horizontal thrust resistance and locking device, loading capacity from A 15 - B 125 according to EN 1433, L/W/H 1000x160x75 mm, item no. 47032
Regulations
84
Declaration of Performance
Tender Texts
Installation example
water-bound road surfaces class A 15 - B 125
Pavement class A 15 - B 125
Asphalt class A 15 - B 125
Pavement class A 15 - B 125
Concrete class A 15 - C 250
Asphalt class C 250
Pavement class C 250
Asphalt class A 15 - B 125
Pavement class A 15 - C 250
Asphalt class C 250
Concrete class C 250
Installation instructions
