Article No. 47409
RECYFIX PRO 100, class C 250
Type 75 with FIBRETEC design slotted grating SW 110/9 mm, in the colour Stone, locked, 1,0 m
Available from stock
Questions?
Our experienced planning team will be happy to help you.
Get in touch

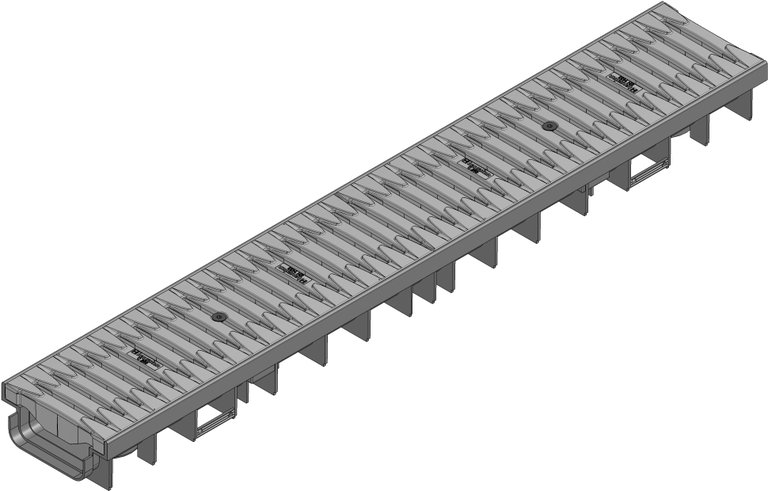

Product image
Top view
Technical drawing
Drawing (CAD)
Drawing
Data Sheet
Technical information and metrics
Article No.
47409
Length
1000 mm
Width
160 mm
Height
75 mm
Einlegetiefe
20 mm
Weight
3.45 kg
Material
recycled, modified Polypropylene, RECYFIX Material (recycled PA), reinforced Polyamide, Steel black galvanised
Intake cross-section
372.0 cm²/m
Nominal size
100
Internal channel cross-section
35 cm²
Type according to DIN EN 1433
M
Channel material
recycled, modified Polypropylene
Material grating
reinforced Polyamide
Regulations
EN 1433, DIN 19580
Sales text
RECYFIX PRO 100 Type 75 with FIBRETEC design slotted grating, in the colour Stone, SW 9 mm, cl. C 250, 1 m
Product description
RECYFIX PRO 100 type 75 - channel made of modified PP, with integrated angle housing, with vertical connection possibility DN/OD 75, with FIBRETEC design slotted grating, slot width 9 mm, in the colour stone, with horizontal thrust resistance and locking device, loading capacity from A 15 - C 250 according to EN 1433, L/W/H 1000x160x75, item no. 47409
Packaging unit
84
Declaration of Performance
Tender Texts
Installation example
Concrete class A 15 - C 250
Cemented floor class A 15 - C 250
Pavement class C 250
Asphalt class A 15 - B 125
Pavement class A 15 - B 125
Concrete class A 15 - C 250
Asphalt class C 250
Pavement class C 250
Asphalt class A 15 - B 125
Pavement class A 15 - C 250
Asphalt class C 250
Concrete class C 250
Installation instructions
