Article No. 48630
RECYFIX PRO 100, class D 400
Type 01 with longitudinal ductile iron grating SW 9 mm, KTL-coated, locked, 1,0 m
Available from stock
Questions?
Our experienced planning team will be happy to help you.
Get in touch

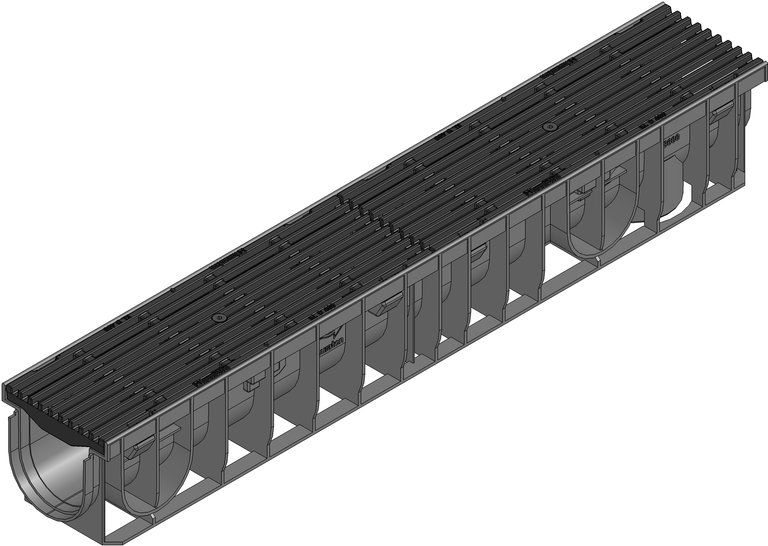

Product image
Top view
Technical drawing
Drawing
Drawing (CAD)
Data Sheet
Technical information and metrics
Article No.
48630
Length
1000 mm
Width
160 mm
Height
150 mm
Einlegetiefe
20 mm
Weight
10.43 kg
Material
Ductile iron GJS 500-7 with KTL-coating, recycled, modified Polypropylene, RECYFIX Material (recycled PA), Steel black galvanised
Intake cross-section
528.0 cm²/m
Nominal size
100
Internal channel cross-section
92 cm²
Type according to DIN EN 1433
M
Channel material
recycled, modified Polypropylene
Material grating
Ductile iron GJS 500-7 with KTL-coating
Regulations
EN 1433, DIN 19580
Sales text
RECYFIX PRO 100 Channel type 01 with longitudinal ductile iron grating, bar distance 9 mm, KTL, cl. D 400, length 1 m, locked
Product description
RECYFIX PRO 100 type 01 - channel made of modified PP, with integrated angle housing, with vertical connection possibility DN/OD 110, with longitudinal ductile iron grating made of spheroidal ductile iron GJS 500-7, bar distance 9 mm, KTL-coated, with horizontal thrust resistance and locking device, loading capacity from A 15 - D 400 according to EN 1433, L/W/H 1000x160x150 mm, item no. 48630
Packaging unit
49
Declaration of Performance
Tender Texts
Installation example
Concrete class D 400
Asphalt class A 15 - B 125
Pavement class A 15 - B 125
Concrete class A 15 - C 250
Asphalt class C 250
Pavement class C 250
Asphalt class A 15 - B 125
Pavement class A 15 - C 250
Asphalt class C 250
Concrete class C 250
Installation instructions
