Article No. 48652
RECYFIX PRO 100
for NW 100, with silt bucket made of composite, 0,5 m
Available from stock
Questions?
Our experienced planning team will be happy to help you.
Get in touch

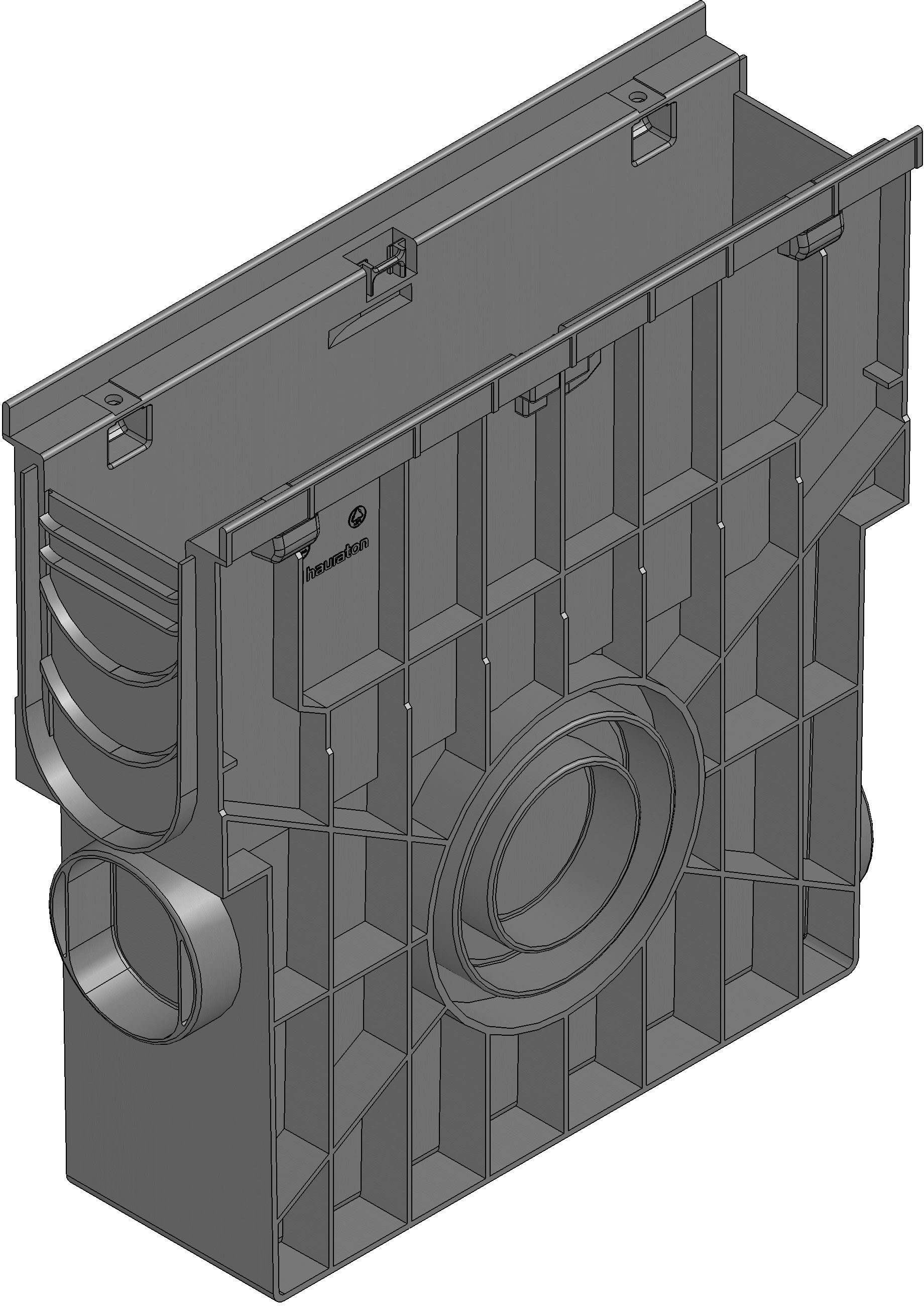

Product image
Technical drawing
Drawing (CAD)
Drawing
Technical information and metrics
Article No.
48652
Length
500 mm
Width
160 mm
Height
504 mm
Weight
4.38 kg
Material
recycled, modified Polypropylene
Nominal size
100
Regulations
EN 1433, DIN 19580
Regulations
Sump unit with integrated edge frames, with silt bucket made of composite, RECYFIX PRO 100, 0.5 m
Regulations
RECYFIX PRO 100 - Trash box made of modified PP, according to EN 1433, with integrated angle housing, four-sided preformed pipe connection element (DN/OD 110 on the front side, DN/OD 110/160 on the sides), with removable silt bucket made of composite, suitable for both-sided connection of channels type RECYFIX PRO 100, loading capacity from A 15 to C 250, in conjunction with Slotted Covers - class D 400, L/W/H 500x160x504 mm, item no. 48652
Regulations
28
