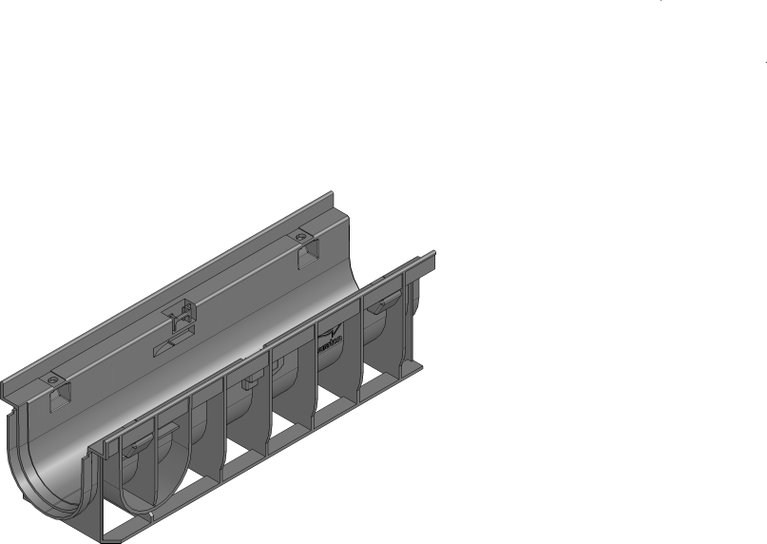

Product image
Technical drawing
Drawing
Drawing (CAD)
Data Sheet
Technical information and metrics
Article No.
48649
Length
500 mm
Width
160 mm
Height
150 mm
Weight
1.02 kg
Material
recycled, modified Polypropylene
Height of angle housing
20 mm
Nominal size
100
Internal channel cross-section
92 cm²
Fall
-
Regulations
Loose blatant, Locking handle
Regulations
M
Channel material
recycled, modified Polypropylene
Regulations
EN 1433, DIN 19580
Regulations
RECYFIX PRO 100 Channel body type 01 with integrated edge frames, 0.5 m
Regulations
RECYFIX PRO 100 type 01 - channel made of modified PP, with integrated angle housing, loading capacity from A 15 - D 400 according to EN 1433, L/W/H 500x160x150 mm, item no. 48649
Regulations
140
Tender Texts
Installation example
Pavement class A 15
Pavement class B 125
Pavement class C 250
Pavement class C 250
Asphalt class D 400
Asphalt class D 400
Pavement class D 400
Asphalt class D 400
Concrete class E 600
Pavement class D 400
Installation instructions
