Article No. 47031
RECYFIX PRO 100
Type 95, with integrated PP angle housing, 1,0 m
Available from stock
Questions?
Our experienced planning team will be happy to help you.
Get in touch

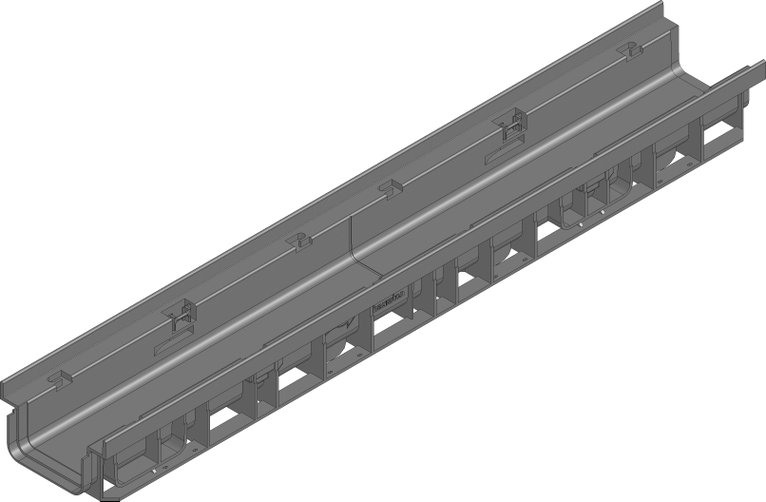

Product image
Technical drawing
Drawing
Drawing (CAD)
Data Sheet
Technical information and metrics
Article No.
47031
Length
1000 mm
Width
160 mm
Height
95 mm
Weight
1.57 kg
Material
recycled, modified Polypropylene
Height of angle housing
20 mm
Nominal size
100
Internal channel cross-section
55 cm²
Fall
-
Regulations
Loose blatant, Locking handle
Regulations
M
Channel material
recycled, modified Polypropylene
Regulations
EN 1433, DIN 19580
Regulations
RECYFIX PRO 100 Channel type 95, 1 m
Regulations
RECYFIX PRO 100 type 95 - channel made of modified PP, with integrated angle housing, with vertical connection possibility DN/OD 75, loading capacity from A 15 - D 400 according to EN 1433, L/W/H 1000x160x95 mm, item no. 47031
Regulations
140
Tender Texts
Installation example
Pavement class A 15
Pavement class B 125
Pavement class C 250
Pavement class C 250
Asphalt class D 400
Asphalt class D 400
Pavement class D 400
Asphalt class D 400
Concrete class E 600
Pavement class D 400
Installation instructions
