Article No. 47140
RECYFIX PRO 150, class B 125
Type 01 with mesh grating, MW 30/10 mm, galvanised, locked, 1,0 m
Available from stock
Questions?
Our experienced planning team will be happy to help you.
Get in touch

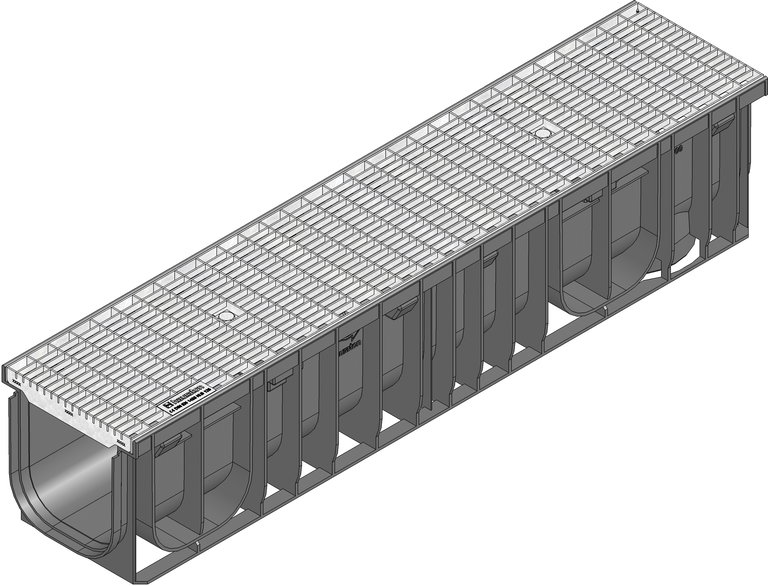

Product image
Top view
Technical drawing
Drawing (CAD)
Drawing
Data Sheet
Technical information and metrics
Article No.
47140
Length
1000 mm
Width
212 mm
Height
210 mm
Einlegetiefe
20 mm
Weight
8.60 kg
Material
Galvanised steel, hot-dip galvanised steel, recycled, modified Polypropylene, reinforced Polyamide
Intake cross-section
1490.0 cm²/m
Nominal size
150
Internal channel cross-section
230 cm²
Regulations
M
Channel material
recycled, modified Polypropylene
Material grating
hot-dip galvanised steel
Regulations
EN 1433, DIN 19580
Regulations
RECYFIX PRO 150 Channel type 01 with mesh grating, MW 30/10, galvanised, cl. B 125, length 1m, locked
Regulations
RECYFIX PRO 150 type 01 - channel made of modified PP, with integrated angle housing, with vertical connection possibility DN/OD 110/160, with mesh grating, galvanised, mesh width 30/10, with locking device, loading capacity from A 15 - B 125 according to EN 1433, L/W/H 1000x212x210 mm, item no. 47140
Regulations
25
Declaration of Performance
Tender Texts
Installation example
water-bound road surfaces class A 15 - B 125
Asphalt class A 15 - B 125
Pavement class A 15 - B 125
Concrete class A 15 - C 250
Asphalt class C 250
Pavement class C 250
Asphalt class A 15 - B 125
Pavement class A 15 - C 250
Asphalt class C 250
Concrete class C 250
Installation instructions
