Article No. 47136
RECYFIX PRO 150, class B 125
Type 01 with FIBRETEC design slotted grating, SW 150/9 mm, in the colour black, locked, 0,5 m
Available from stock
Questions?
Our experienced planning team will be happy to help you.
Get in touch

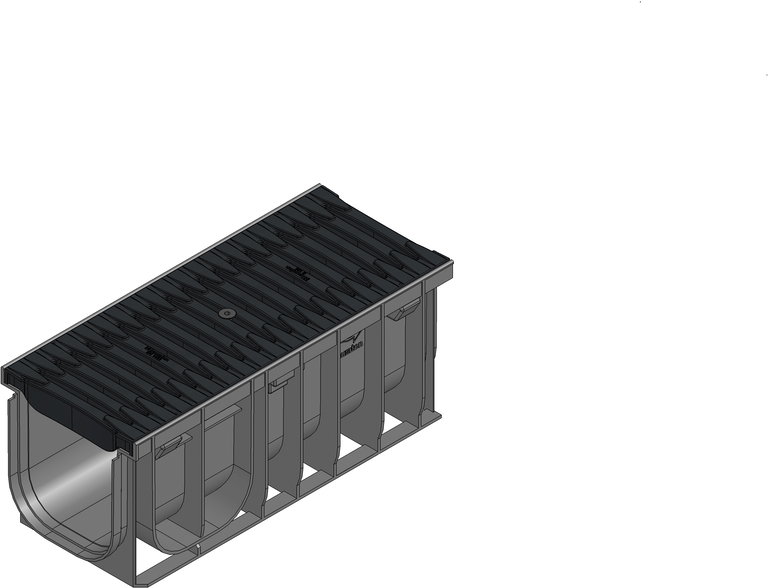

Product image
Technical drawing
Drawing (CAD)
Drawing
Data Sheet
Technical information and metrics
Article No.
47136
Length
500 mm
Width
212 mm
Height
210 mm
Einlegetiefe
20 mm
Weight
3.70 kg
Material
recycled, modified Polypropylene, reinforced Polyamide, Steel black galvanised
Intake cross-section
500.0 cm²/m
Nominal size
150
Internal channel cross-section
230 cm²
Type according to DIN EN 1433
M
Channel material
recycled, modified Polypropylene
Material grating
reinforced Polyamide
Regulations
EN 1433, DIN 51130, AS 4586, DIN 19580, EN 16165
Sales text
RECYFIX PRO 150 Channel type 01 with FIBRETEC design slotted grating SW 150/9 mm, black, cl. B 125, locked, 0,5 m
Product description
RECYFIX PRO 150 type 01 - Channel made of recycled PP, with integrated angle housing, with FIBRETEC design slotted grating slot width 150/9 mm, black, made of fibre-refinforced polyamid, with horizontal thrust resistance and locking, load class A 15 - B 125 according to EN 1433, LxWxH 500x212x210 mm, item no. 47136
Packaging unit
50
Declaration of Performance
Tender Texts
Installation example
water-bound road surfaces class A 15 - B 125
Asphalt class A 15 - B 125
Pavement class A 15 - B 125
Concrete class A 15 - C 250
Asphalt class C 250
Pavement class C 250
Asphalt class A 15 - B 125
Pavement class A 15 - C 250
Asphalt class C 250
Concrete class C 250
Installation instructions
