Article No. 47110
RECYFIX PRO 150, class C 250
Type 115 with FIBRETEC design slotted grating SW 150/9 mm, in the colour black, locked, 1,0 m
Available from stock
Questions?
Our experienced planning team will be happy to help you.
Get in touch

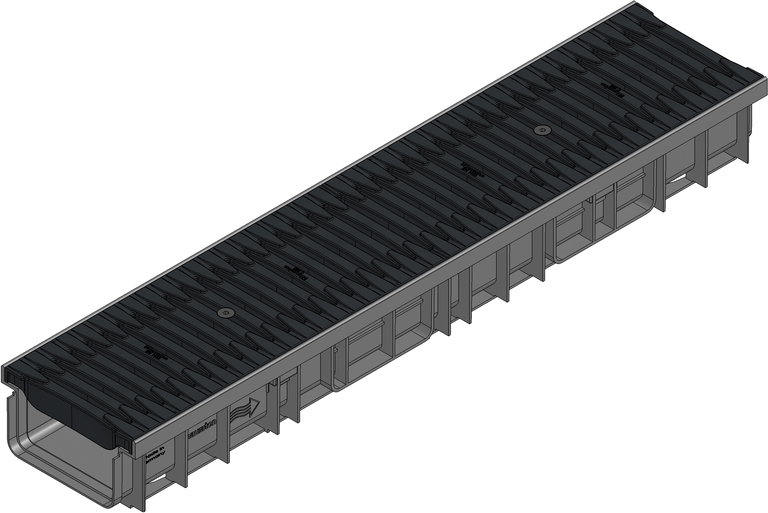

Product image
Top view
Technical drawing
Drawing (CAD)
Drawing
Data Sheet
Technical information and metrics
Article No.
47110
Length
1000 mm
Width
212 mm
Height
115 mm
Einlegetiefe
20 mm
Weight
6.16 kg
Material
recycled, modified Polypropylene, reinforced Polyamide, Steel black galvanised
Intake cross-section
500.0 cm²/m
Nominal size
150
Internal channel cross-section
116 cm²
Type according to DIN EN 1433
M
Channel material
recycled, modified Polypropylene
Material grating
reinforced Polyamide
Regulations
EN 1433, DIN 19580
Sales text
RECYFIX PRO 150 channel type 115 with integrated angle housing, with FIBRETEC design slotted grating, SW 150/9 mm, black, cl. C 250, locked, 1 m
Product description
RECYFIX PRO 150 type 115 - Channel made of recycled PP, with integrated angle housing, with vertical DN 75/110 connection possibility, with FIBRETEC design slotted grating slot width 150/9 mm, black, made of reinforced polyamide, with horizontal thrust resistance and locking, load class A 15 - C 250 according to EN 1433, LxWxH 1000x212x115 mm, item no. 47110
Packaging unit
45
Declaration of Performance
Tender Texts
Installation example
Concrete class A 15 - C 250
Cemented floor class A 15 - C 250
Asphalt class A 15 - B 125
Pavement class A 15 - B 125
Concrete class A 15 - C 250
Asphalt class C 250
Pavement class C 250
Asphalt class A 15 - B 125
Pavement class A 15 - C 250
Asphalt class C 250
Concrete class C 250
Installation instructions
