Article No. 47134
RECYFIX PRO 150, class C 250
Type 115 with longitudinal ductile iron grating SW 9 mm, KTL-coated, locked, 1,0 m
Available from stock
Questions?
Our experienced planning team will be happy to help you.
Get in touch

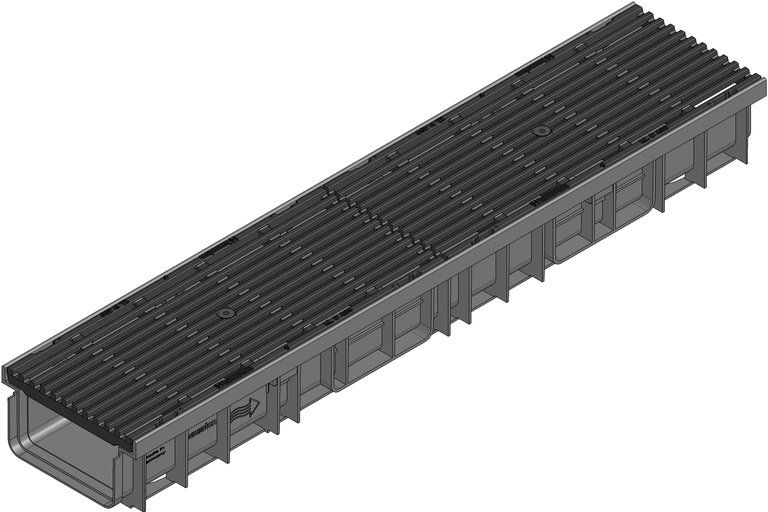

Product image
Top view
Technical drawing
Drawing (CAD)
Drawing
Data Sheet
Technical information and metrics
Article No.
47134
Length
1000 mm
Width
212 mm
Height
115 mm
Einlegetiefe
20 mm
Weight
15.88 kg
Material
Ductile iron GJS 500-7 with KTL-coating, recycled, modified Polypropylene, reinforced Polyamide, Steel black galvanised
Intake cross-section
740.0 cm²/m
Nominal size
150
Internal channel cross-section
116 cm²
Regulations
M
Channel material
recycled, modified Polypropylene
Material grating
Ductile iron GJS 500-7 with KTL-coating
Regulations
EN 1433, DIN 19580
Regulations
RECYFIX PRO 150 channel type 115 with longitudinal ductile iron grating, bar distance 9 mm, KTL-coated, cl. C 250, lenght 1 m, locked
Regulations
RECYFIX PRO 150 type 115 - channel made of modified PP, with integrated angle housing, with vertical connection possibility DN/OD 75/110, with longitudinal ductile iron grating made of spheroidal ductile iron GJS 500-7, bar distance 9 mm, KTL-coated, with horizontal thrust resistance and locking device, loading capacity from A 15 - C 250 according to EN 1433, L/W/H 1000x212x115 mm, item no. 47134
Regulations
45
Declaration of Performance
Tender Texts
Installation example
Concrete class A 15 - C 250
Cemented floor class A 15 - C 250
Asphalt class A 15 - B 125
Pavement class A 15 - B 125
Concrete class A 15 - C 250
Asphalt class C 250
Pavement class C 250
Asphalt class A 15 - B 125
Pavement class A 15 - C 250
Asphalt class C 250
Concrete class C 250
Installation instructions
