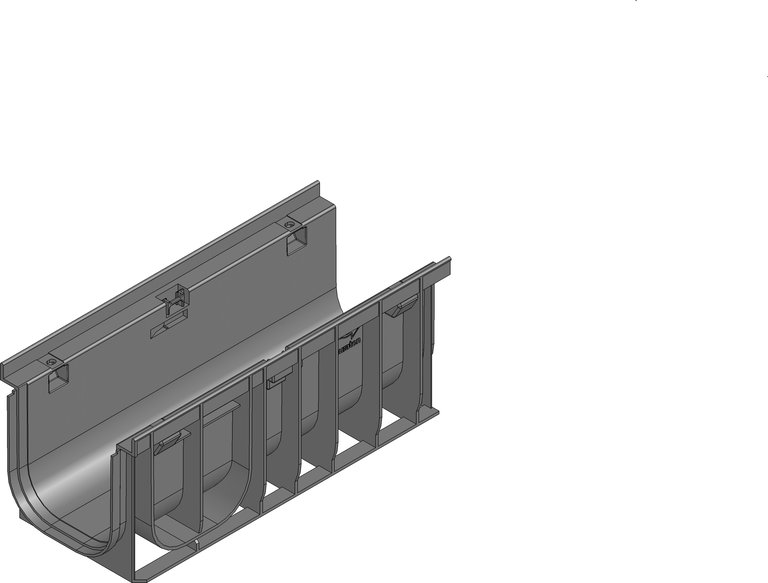

Product image
Technical drawing
Drawing (CAD)
Drawing
Data Sheet
Technical information and metrics
Article No.
47149
Length
500 mm
Width
212 mm
Height
210 mm
Weight
1.58 kg
Material
recycled, modified Polypropylene
Height of angle housing
20 mm
Nominal size
150
Internal channel cross-section
230 cm²
Fall
-
Regulations
M
Channel material
recycled, modified Polypropylene
Regulations
EN 1433, DIN 19580
Regulations
RECYFIX PRO 150 Channel body type 01 with integrated edge frames, 0.5 m
Regulations
RECYFIX PRO 150 type 01 - channel made of modified PP, with integrated angle housing, loading capacity from A 15 - D 400, L/W/H 500x212x210 mm, item no. 47149
Regulations
80
Tender Texts
Installation example
Pavement class C 250
Asphalt class D 400
Asphalt class D 400
Pavement class D 400
Concrete class E 600
Installation instructions
