Product image
Technical drawing
Drawing
Drawing (CAD)
Data Sheet
Technical information and metrics
Article No.
47130
Length
1000 mm
Width
212 mm
Height
115 mm
Weight
1.93 kg
Material
recycled, modified Polypropylene
Height of angle housing
20 mm
Nominal size
150
Internal channel cross-section
116 cm²
Fall
-
Fixing type
Loose blatant, Locking handle
Type according to DIN EN 1433
M
Channel material
recycled, modified Polypropylene
Regulations
EN 1433, DIN 19580
Sales text

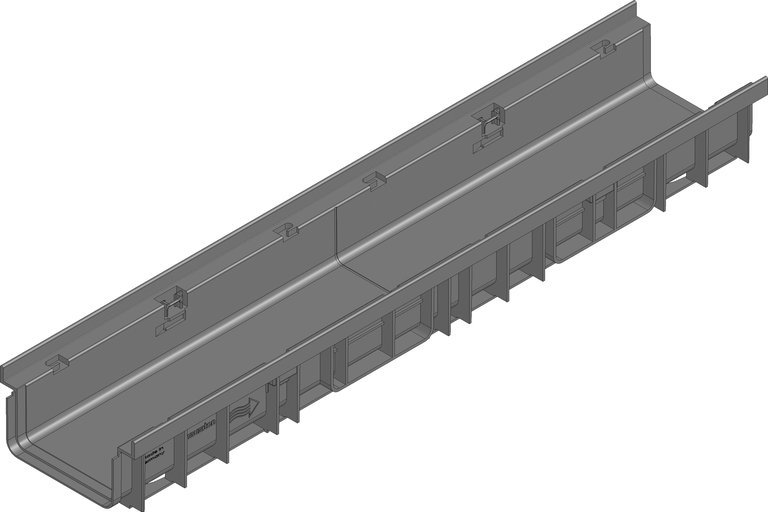

RECYFIX PRO 150 Channel body type 115 with integrated edge frames, 1 m
Product description
RECYFIX PRO 150 type 115 - channel made of modified PP, with integrated angle housing, with vertical connection possibility DN/OD 75/110, loading capacity from A 15 - D 400 according to EN 1433, L/W/H 1000x212x115 mm, item no. 47130
Packaging unit
70
Tender Texts
Installation example
Pavement class C 250,
Asphalt class D 400,
Asphalt class D 400,
Pavement class D 400,
Concrete class E 600,
Installation instructions
