Article No. 47249
RECYFIX PRO 200, class B 125
Typ 010 with mesh grating, stainless steel, MW 30/10 mm, stainless steel, locked, 0,5 m
Available from stock
Questions?
Our experienced planning team will be happy to help you.
Get in touch

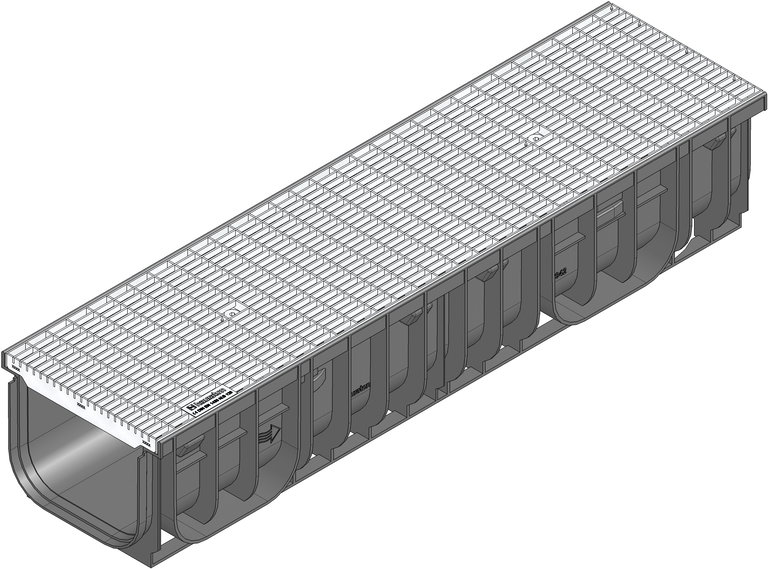

Product image
Top view
Technical drawing
Drawing (CAD)
Drawing
Data Sheet
Technical information and metrics
Article No.
47249
Length
1000 mm
Width
262 mm
Height
200 mm
Einlegetiefe
20 mm
Weight
10.70 kg
Material
Galvanised steel, recycled, modified Polypropylene, Stainless steel 1.4301
Intake cross-section
1873.0 cm²/m
Nominal size
200
Internal channel cross-section
294 cm²
Type according to DIN EN 1433
M
Channel material
recycled, modified Polypropylene
Material grating
Stainless steel 1.4301
Regulations
EN 1433, DIN 19580
Sales text
RECYFIX PRO 200 Channel type 010 with mesh grating, MW 30/10, stainless steel, cl. B 125, length 1 m, locked
Product description
RECYFIX PRO 200 type 010 - channel made of modified PP, with integrated angle housing, with vertical connection possibility DN/OD 110/160, with mesh grating, stainless steel CNS 1.4301 (AISI 304), mesh width 30/10, loading capacity from A 15 - B 125 according to EN 1433, L/W/H 1000x262x200 mm, item no. 47249
Packaging unit
20
Declaration of Performance
Tender Texts
Installation example
water-bound road surfaces class A 15 - B 125
Asphalt class A 15 - B 125
Pavement class A 15 - B 125
Concrete class A 15 - C 250
Asphalt class C 250
Pavement class C 250
Asphalt class A 15 - B 125
Pavement class A 15 - C 250
Asphalt class C 250
Concrete class C 250
Installation instructions
