Article No. 47233
RECYFIX PRO 200, class B 125
Type 115 with FIBRETEC design slotted grating, SW 200/10 mm, in the colour black, locked, 1,0 m
Available from stock
Questions?
Our experienced planning team will be happy to help you.
Get in touch

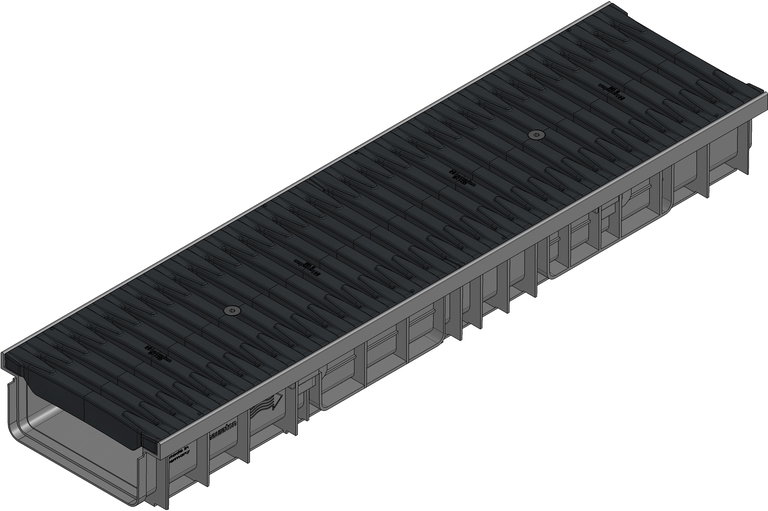

Product image
Top view
Technical drawing
Drawing (CAD)
Drawing
Data Sheet
Technical information and metrics
Article No.
47233
Length
1000 mm
Width
262 mm
Height
115 mm
Einlegetiefe
20 mm
Weight
7.03 kg
Material
Galvanised steel, recycled, modified Polypropylene, reinforced Polyamide, Steel black galvanised
Intake cross-section
656.0 cm²/m
Nominal size
200
Internal channel cross-section
150 cm²
Type according to DIN EN 1433
M
Channel material
recycled, modified Polypropylene
Material grating
reinforced Polyamide
Regulations
EN 1433, DIN 51130, AS 4586, DIN 19580, EN 16165
Sales text
RECYFIX PRO 200 Channel type 115 with integrated angle housing, with FIBRETEC design slotted grating, SW 200/10 mm, black, cl. B 125, locked, 1 m
Product description
RECYFIX PRO 200 type 115 - Channel body made of recycled polypropylene, with integrated angle housing, with vertical connection possibility DN/OD 75/110, with FIBRETEC design slotted grating, slot width 200/10 mm, black, made of fibre-reinforced polyamide, with longitudinal slide protection and locking, load class A 15 - B 125 according to EN 1433, L/W/H 1000x262x115 mm, item no. 47233
Packaging unit
40
Declaration of Performance
Tender Texts
Installation example
water-bound road surfaces class A 15 - B 125
Asphalt class A 15 - B 125
Pavement class A 15 - B 125
Concrete class A 15 - C 250
Asphalt class C 250
Pavement class C 250
Asphalt class A 15 - B 125
Pavement class A 15 - C 250
Asphalt class C 250
Concrete class C 250
Installation instructions
