Article No. 41240

RECYFIX STANDARD 100, class A 15

Type 01 with perforated grating "Elegance", stainless steel, locked, 1,0 m

Available from stock

Questions?

Our experienced planning team will be happy to help you.

Get in touch

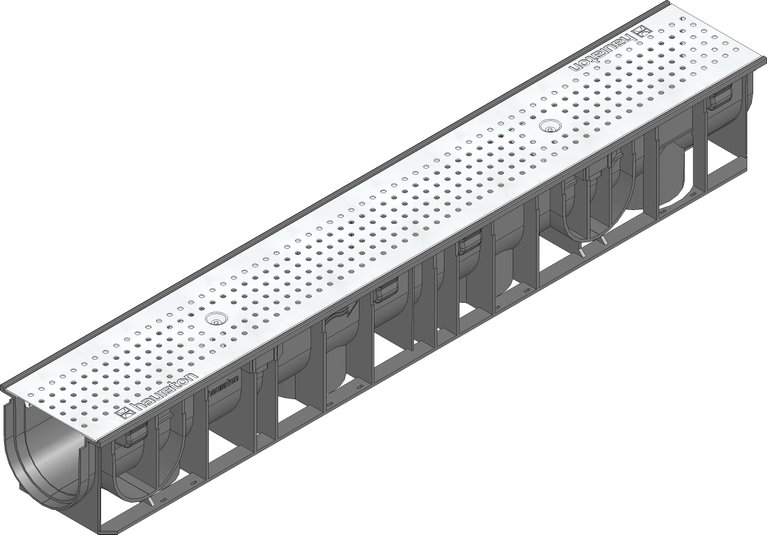

Product image

Technical drawing

Drawing (CAD)

Top view

Data Sheet

Technical information and metrics

Article No.
41240
Length
1000 mm
Width
150 mm
Height
134 mm
Einlegetiefe
3 mm
Weight
3.90 kg
Material
recycled, modified Polypropylene, RECYFIX Material (recycled PA), Stainless steel 1.4301
Intake cross-section
100.0 cm²/m
Nominal size
100
Internal channel cross-section
92 cm²
Type according to DIN EN 1433
M
Channel material
recycled, modified Polypropylene
Material grating
Stainless steel 1.4301
Regulations
EN 1433, DIN 19580
Sales text
RECYFIX STANDARD 100 channel type 01 with perforated grating ""Elegance"", stainless steel, cl. A 15, locked
Product description
RECYFIX STANDARD 100 type 01 - channel body made of modified PP, according to EN 1433, with vertical connection possibility DN/OD 110, with perforated grating, stainless steel CNS 1.4301 (AISI 304), Ø 6 mm, with locking device, loading capacity A 15, L/W/H 1000x150x134 mm, item no. 41240
Packaging unit
49

Declaration of Performance

Tender Texts

Installation example

Pavement class A 15 - B 125

Cemented floor class A 15 - B 125

Pavement class C 250

Pavement class A 15 - B 125

Asphalt class A 15 - B 125

Concrete class A 15 - C 250

Asphalt class C 250

Pavement class C 250

Installation instructions
