Article No. 41244
RECYFIX STANDARD 100, class A 15
Type 60 with perforated grating "Elegance", stainless steel, locked*, 1,0 m
Available from stock
Questions?
Our experienced planning team will be happy to help you.
Get in touch

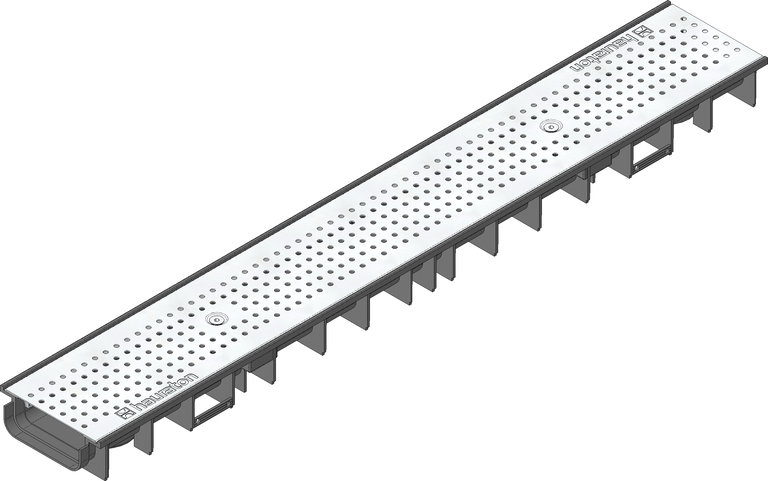

Product image
Technical drawing
Drawing (CAD)
Drawing
Top view
Data Sheet
Technical information and metrics
Article No.
41244
Length
1000 mm
Width
150 mm
Height
60 mm
Einlegetiefe
3 mm
Weight
2.95 kg
Material
recycled, modified Polypropylene, RECYFIX Material (recycled PA), Stainless steel 1.4301
Intake cross-section
100.0 cm²/m
Nominal size
100
Internal channel cross-section
35 cm²
Type according to DIN EN 1433
M
Channel material
recycled, modified Polypropylene
Material grating
Stainless steel 1.4301
Regulations
EN 1433, DIN 19580
Sales text
RECYFIX STANDARD 100 Channel type 60 with perforated grating Ø 6 mm, stainless steel, cl. A 15, locked, 1 m
Product description
RECYFIX STANDARD 100 type 60 - channel made of modified PP, according to EN 1433, with vertical connection possibility DN/OD 75, with perforated grating, stainless steel CNS 1.4301 (AISI 304), Ø 6 mm, with locking device, loading capacity A 15, L/W/H 1000x150x60 mm, item no. 41244
Packaging unit
88
Declaration of Performance
Tender Texts
Installation example
Pavement class A 15 - B 125,
Cemented floor class A 15 - B 125,
Pavement class C 250,
Asphalt class A 15 - B 125,
Asphalt class C 250,
Installation instructions
