Article No. 41227
RECYFIX STANDARD 100, class B 125
Type 01 with mesh grating MW 30/10 mm, locked, 0,5 m
Available from stock
Questions?
Our experienced planning team will be happy to help you.
Get in touch

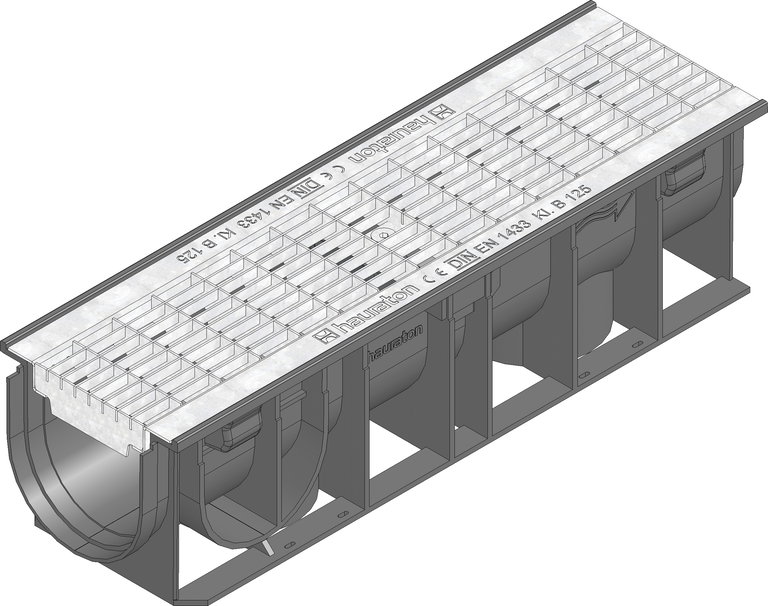

Product image
Technical drawing
Drawing (CAD)
Drawing
Data Sheet
Technical information and metrics
Article No.
41227
Length
500 mm
Width
150 mm
Height
134 mm
Einlegetiefe
2 mm
Weight
2.50 kg
Material
Galvanised steel, hot-dip galvanised steel, recycled, modified Polypropylene, RECYFIX Material (recycled PA)
Intake cross-section
735.0 cm²/m
Nominal size
100
Internal channel cross-section
92 cm²
Regulations
M
Channel material
recycled, modified Polypropylene
Material grating
hot-dip galvanised steel
Regulations
EN 1433, DIN 19580
Regulations
RECYFIX STANDARD 100 Channel type 01 with mesh grating MS 30/10 mm, galvanised, cl. B 125, locked, 0.5 m
Regulations
RECYFIX STANDARD 100 type 01 - channel made of modified PP, according to EN 1433, with mesh grating, galvanised, mesh width 30/10 with locking device, loading capacity from A 15 - B 125, L/W/H 500x150x134 mm, item no. 41227
Regulations
98
Declaration of Performance
Tender Texts
Installation example
Pavement class A 15 - B 125
Cemented floor class A 15 - B 125
Pavement class C 250
Asphalt class A 15 - B 125
Asphalt class C 250
Installation instructions
