Article No. 41238
RECYFIX STANDARD 100, class C 250
Type 010 with ductile iron grating, SW 80/6 mm, black, locked, 0,5 m
Available from stock
Questions?
Our experienced planning team will be happy to help you.
Get in touch

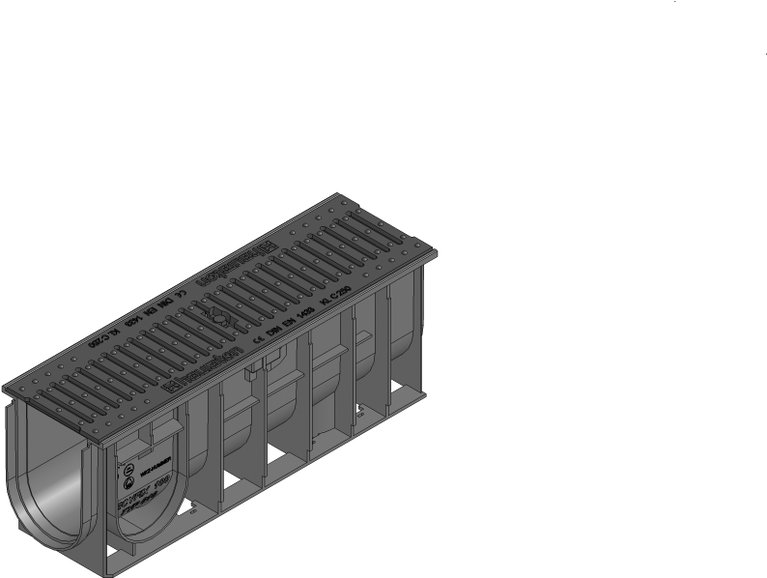

Product image
Technical drawing
Drawing (CAD)
Drawing
Data Sheet
Technical information and metrics
Article No.
41238
Length
500 mm
Width
150 mm
Height
185 mm
Einlegetiefe
6 mm
Weight
4.52 kg
Material
Ductile iron GJS 500-7, recycled, modified Polypropylene, RECYFIX Material (recycled PA), Steel black galvanised
Intake cross-section
254.0 cm²/m
Nominal size
100
Internal channel cross-section
142 cm²
Type according to DIN EN 1433
M
Channel material
recycled, modified Polypropylene
Material grating
Ductile iron GJS 500-7
Regulations
EN 1433, DIN 51130, AS 4586, DIN 19580, EN 16165
Sales text
RECYFIX STANDARD 100 Channel type 010 with ductile iron grating SW 80/6 mm, black, cl. C 250, locked, 0.5 m
Product description
RECYFIX STANDARD 100 type 010 - channel made of modified PP, according to EN 1433, with ductile iron grating made of spheroidal ductile iron GJS 500-7, slot width 6 mm, black, with horizontal thrust resistance and locking device, loading capacity from A 15 - C 250, L/W/H 500x160x185 mm, item no. 41238
Packaging unit
84
Declaration of Performance
Tender Texts
Installation example
Pavement class A 15 - B 125,
Cemented floor class A 15 - B 125,
Pavement class C 250,
Asphalt class A 15 - B 125,
Asphalt class C 250,
Installation instructions
