Article No. 40239
RECYFIX STANDARD 100, class C 250
Type 60 with GUGI-Ductile iron mesh grating MW 15/25 mm, black, locked, 1,0 m
Available from stock
Questions?
Our experienced planning team will be happy to help you.
Get in touch

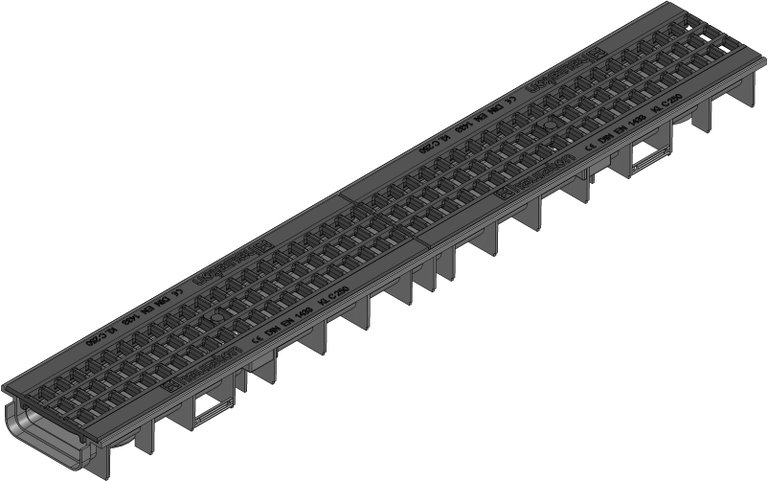

Product image

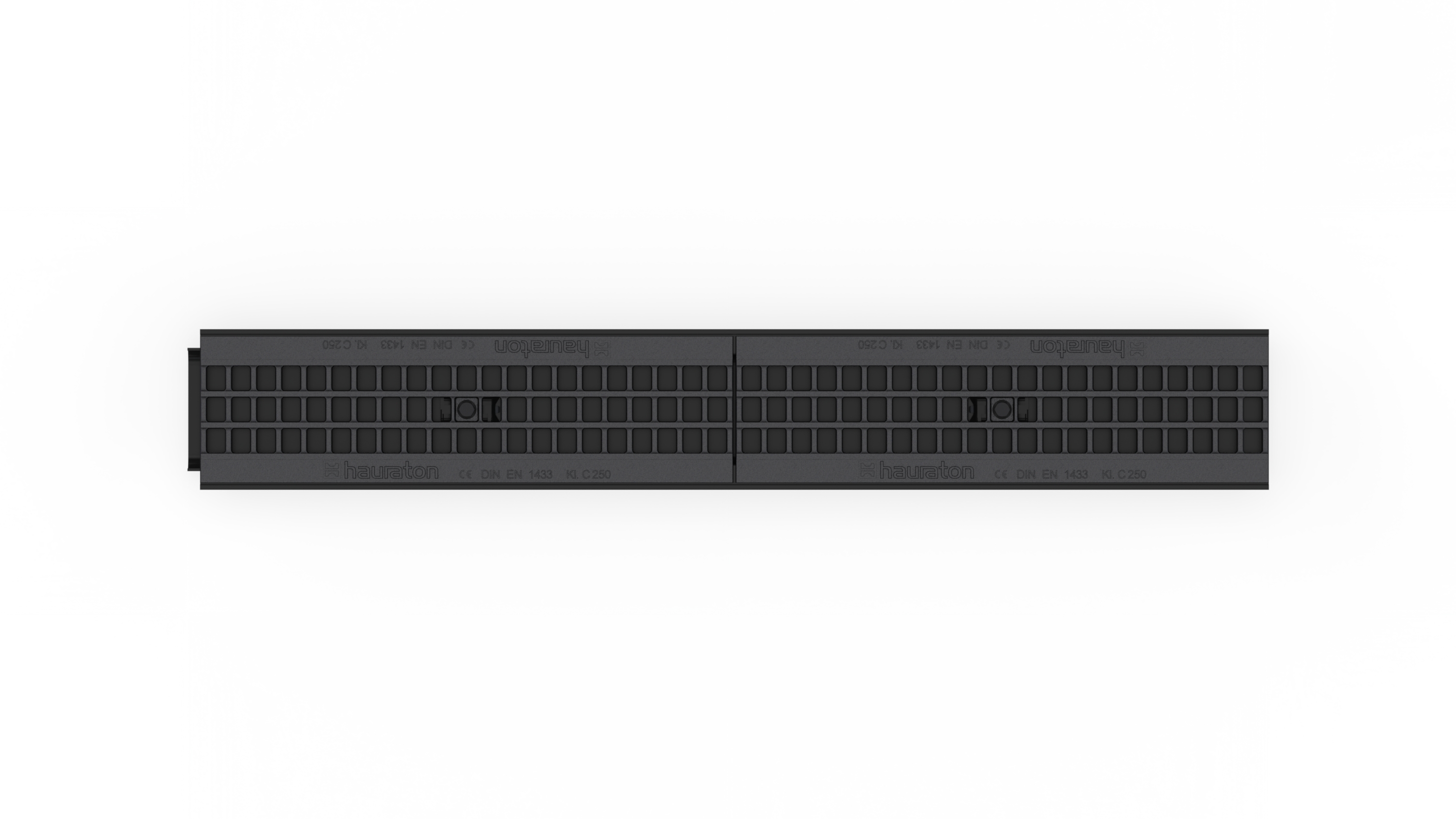

Top view
Technical drawing
Drawing (CAD)
Drawing
Data Sheet
Technical information and metrics
Article No.
40239
Length
1000 mm
Width
150 mm
Height
60 mm
Einlegetiefe
6 mm
Weight
6.85 kg
Material
Ductile iron GJS 500-7, recycled, modified Polypropylene, RECYFIX Material (recycled PA), Steel black galvanised
Intake cross-section
453.0 cm²/m
Nominal size
100
Internal channel cross-section
35 cm²
Type according to DIN EN 1433
M
Channel material
recycled, modified Polypropylene
Material grating
Ductile iron GJS 500-7
Regulations
EN 1433, DIN 19580
Sales text
RECYFIX STANDARD 100 Channel Type 60 with GUGI-ductile iron mesh grating MW 15/25, black, cl. C 250 with locking device
Product description
RECYFIX STANDARD 100 type 60 - channel made of modified PP, according to EN 1433, with vertical connection possibility DN/OD 75, with GUGI-ductile iron mesh grating made of spheroidal ductile iron GJS 500-7, mesh width 15/25, with horizontal thrust resistance and locking device, black, loading capacity from A 15 - C 250, L/W/H 1000x150x60 mm, item no. 40239
Packaging unit
88
Declaration of Performance
Tender Texts
Installation example
Pavement class A 15 - B 125
Cemented floor class A 15 - B 125
Pavement class C 250
Pavement class A 15 - B 125
Asphalt class A 15 - B 125
Concrete class A 15 - C 250
Asphalt class C 250
Pavement class C 250
Installation instructions
