Article No. 40231
RECYFIX STANDARD 100, trafficable
Type 01 with slotted grating SW 75/9 mm, locked, 1,0 m
Available from stock
Questions?
Our experienced planning team will be happy to help you.
Get in touch

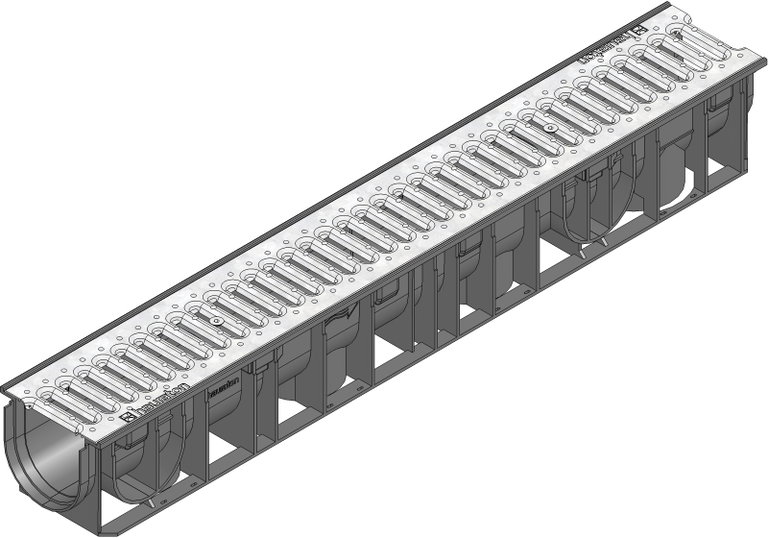

Product image
Technical drawing
Drawing
Drawing (CAD)
Top view
Data Sheet
Technical information and metrics
Article No.
40231
Length
1000 mm
Width
150 mm
Height
134 mm
Einlegetiefe
3 mm
Weight
3.99 kg
Material
Galvanised steel, recycled, modified Polypropylene, RECYFIX Material (recycled PA), strip galvanized steel
Intake cross-section
242.0 cm²/m
Nominal size
100
Internal channel cross-section
92 cm²
Regulations
M
Channel material
recycled, modified Polypropylene
Material grating
strip galvanized steel
Regulations
EN 1433, DIN 19580
Regulations
RECYFIX STANDARD 100 Channel type 01 with slotted grating, galvanised, trafficable with locking
Regulations
RECYFIX STANDARD 100 type 01- channel made of modified PP, according to EN 1433, with vertical connection possibility DN/OD 110, with slotted grating, galvanised, with locking device, trafficable, locked, slot width 75/9, L/W/H 1000x150x134 mm, item no. 40231
Regulations
49
Declaration of Performance
Tender Texts
Installation example
Pavement class A 15 - B 125
Cemented floor class A 15 - B 125
Pavement class C 250
Asphalt class A 15 - B 125
Asphalt class C 250
Installation instructions
