Article No. 40296
RECYFIX STANDARD 100, trafficable
Type 010 with slotted grating SW 75/9 mm, galvanised, locked, 1,0 m
Available from stock
Questions?
Our experienced planning team will be happy to help you.
Get in touch

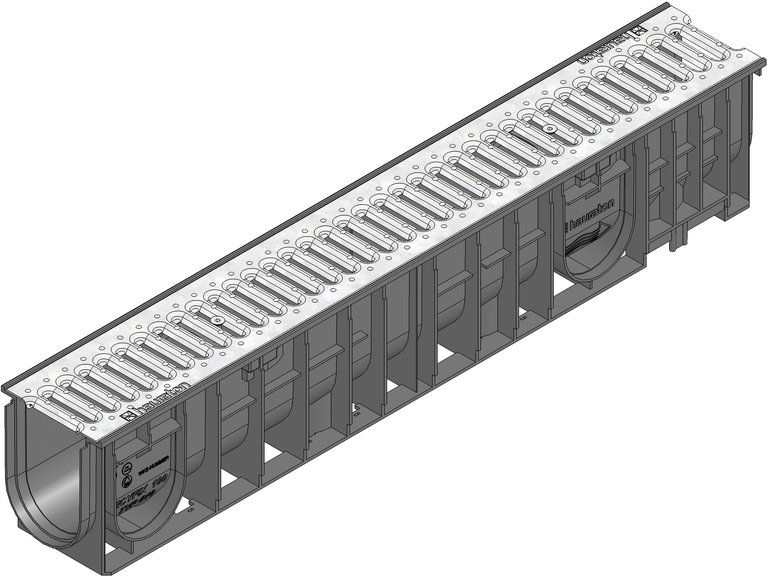

Product image
Top view
Technical drawing
Drawing
Drawing (CAD)
Data Sheet
Technical information and metrics
Article No.
40296
Length
1000 mm
Width
150 mm
Height
185 mm
Einlegetiefe
3 mm
Weight
4.58 kg
Material
Galvanised steel, recycled, modified Polypropylene, RECYFIX Material (recycled PA), strip galvanized steel
Intake cross-section
242.0 cm²/m
Nominal size
100
Internal channel cross-section
142 cm²
Type according to DIN EN 1433
M
Channel material
recycled, modified Polypropylene
Material grating
strip galvanized steel
Regulations
EN 1433, DIN 19580
Sales text
RECYFIX STANDARD 100 Channel type 010 with slotted grating SW 75/9 mm, galvanised, trafficable, locked, 1 m
Product description
RECYFIX STANDARD 100 type 010 - channel made of modified PP, according to EN 1433, with vertical connection possibility DN/OD 110, with slotted grating, galvanised, with locking device, slot width 75/9, trafficable, L/W/H 1000x150x185 mm, item no. 40296
Packaging unit
42
Declaration of Performance
Tender Texts
Installation example
Pavement class A 15 - B 125,
Cemented floor class A 15 - B 125,
Pavement class C 250,
Asphalt class A 15 - B 125,
Asphalt class C 250,
Installation instructions
