Article No. 41206
RECYFIX STANDARD 100, trafficable
Type 80 with slotted grating SW 75/9 mm, stainless steel, locked, 1,0 m
Available from stock
Questions?
Our experienced planning team will be happy to help you.
Get in touch

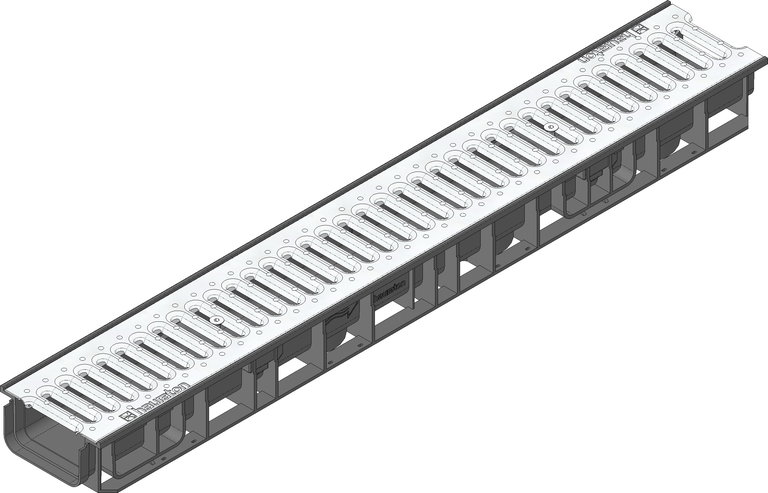

Product image
Technical drawing
Drawing (CAD)
Drawing
Top view
Data Sheet
Technical information and metrics
Article No.
41206
Length
1000 mm
Width
150 mm
Height
80 mm
Einlegetiefe
3 mm
Weight
3.69 kg
Material
recycled, modified Polypropylene, RECYFIX Material (recycled PA), Stainless steel 1.4301
Intake cross-section
242.0 cm²/m
Nominal size
100
Internal channel cross-section
55 cm²
Regulations
M
Channel material
recycled, modified Polypropylene
Material grating
Stainless steel 1.4301
Regulations
EN 1433, DIN 19580
Regulations
RECYFIX STANDARD 100 Channel type 80 with slotted grating SW 75/9 mm, stainless steel, trafficable, locked, 1 m
Regulations
RECYFIX STANDARD 100 type S 80 - channel made of modified PP, according to EN 1433, with vertical connection possibility DN/OD 75, with slotted grating, stainless steel CNS 1.4301 (AISI 304), slot width 75/9, with locking device, trafficable, L/W/H 1000x146x80 mm, item no. 41206
Regulations
88
Declaration of Performance
Tender Texts
Installation example
Pavement class A 15 - B 125
Cemented floor class A 15 - B 125
Pavement class C 250
Asphalt class A 15 - B 125
Asphalt class C 250
Installation instructions
