Article No. 40136
RECYFIX STANDARD 150, class B 125
Type 100 with mesh grating MW 30/10 mm, galvanised, locked, 1,0 m
Available from stock
Questions?
Our experienced planning team will be happy to help you.
Get in touch

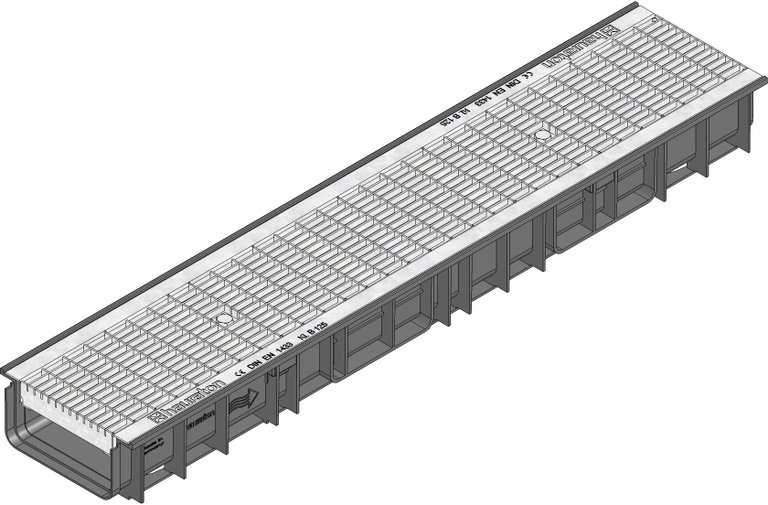

Product image
Top view
Technical drawing
Drawing (CAD)
Drawing
Data Sheet
Technical information and metrics
Article No.
40136
Length
1000 mm
Width
210 mm
Height
100 mm
Einlegetiefe
2 mm
Weight
7.80 kg
Material
Galvanised steel, hot-dip galvanised steel, recycled, modified Polypropylene, reinforced Polyamide
Intake cross-section
1075.0 cm²/m
Nominal size
150
Internal channel cross-section
116 cm²
Type according to DIN EN 1433
M
Channel material
recycled, modified Polypropylene
Material grating
hot-dip galvanised steel
Regulations
EN 1433, AS 4586, DIN 19580
Sales text
RECYFIX STANDARD 150 Type 100 with mesh grating, MW 30/10, cl. B 125, locked
Product description
RECYFIX STANDARD 150 type 100 - channel made of modified PP, according to EN 1433, with vertical connection possibility DN/OD 75/110, with mesh grating, mesh width 30/10, galvanised, loading capacity from A 15 - B 125, with locking device, L/W/H 1000x210x100 mm, item no. 40136
Packaging unit
50
Declaration of Performance
Tender Texts
Installation example
Pavement class A 15 - B 125
Cemented floor class A 15 - B 125
Pavement class C 250
Pavement class A 15 - B 125
Asphalt class A 15 - B 125
Concrete class A 15 - C 250
Asphalt class C 250
Pavement class C 250
Installation instructions
