Article No. 40150
RECYFIX STANDARD 150, class C 250
Type 01 with ductile iron grating black, SW 6 mm, locked, 0,5 m
Available from stock
Questions?
Our experienced planning team will be happy to help you.
Get in touch

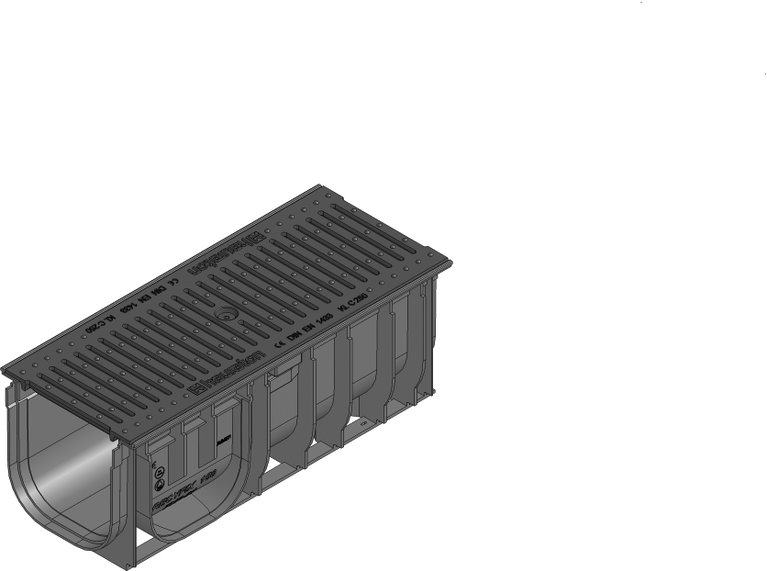

Product image
Technical drawing
Drawing (CAD)
Drawing
Data Sheet
Technical information and metrics
Article No.
40150
Length
500 mm
Width
210 mm
Height
192 mm
Einlegetiefe
6 mm
Weight
6.58 kg
Material
Ductile iron GJS 500-7, recycled, modified Polypropylene, reinforced Polyamide, Steel black galvanised
Intake cross-section
400.0 cm²/m
Nominal size
150
Internal channel cross-section
225 cm²
Type according to DIN EN 1433
M
Channel material
recycled, modified Polypropylene
Material grating
Ductile iron GJS 500-7
Regulations
EN 1433, DIN 19580
Sales text
RECYFIX STANDARD 150 Type 01 with ductile iron grating black, SW 6 mm, cl. C 250, locked
Product description
RECYFIX STANDARD 150 type 01 - channel made of modified PP, according to EN 1433, with ductile iron grating made of spheroidal ductile iron GJS 500-7, slot width 6 mm, with horizontal thrust resistance and locking device, black, loading capacity from A 15 - C 250, L/W/H 500x210x192 mm, item no. 40150
Packaging unit
50
Declaration of Performance
Tender Texts
Installation example
Pavement class A 15 - B 125
Cemented floor class A 15 - B 125
Pavement class C 250
Pavement class A 15 - B 125
Asphalt class A 15 - B 125
Concrete class A 15 - C 250
Asphalt class C 250
Pavement class C 250
Installation instructions
