Article No. 40676
RECYFIX STANDARD 200, class B 125
Type 020 with mesh grating MW 30/30 mm, galvanised, locked, 1,0 m
Available from stock
Questions?
Our experienced planning team will be happy to help you.
Get in touch

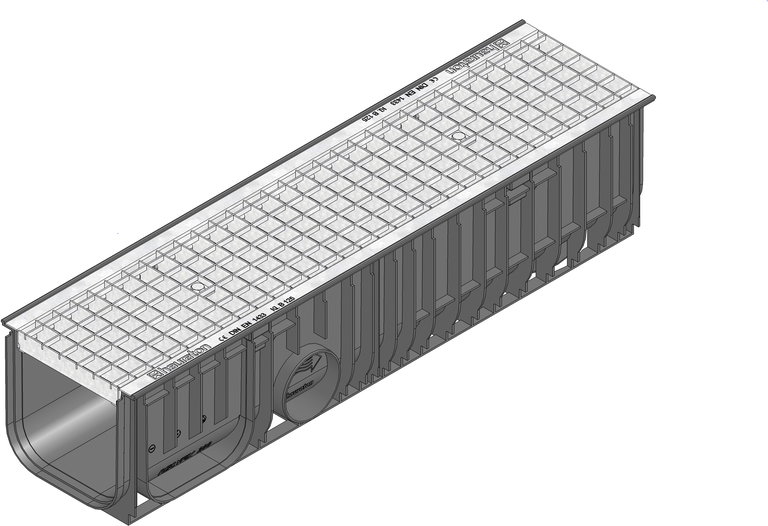

Product image
Top view
Technical drawing
Drawing (CAD)
Drawing (CAD)
Data Sheet
Technical information and metrics
Article No.
40676
Length
1000 mm
Width
256 mm
Height
235 mm
Einlegetiefe
2 mm
Weight
9.67 kg
Material
Galvanised steel, hot-dip galvanised steel, recycled, modified Polypropylene
Intake cross-section
1633.0 cm²/m
Nominal size
200
Internal channel cross-section
394 cm²
Type according to DIN EN 1433
M
Channel material
recycled, modified Polypropylene
Material grating
hot-dip galvanised steel
Regulations
EN 1433, DIN 19580
Sales text
RECYFIX STANDARD 200 channel type 020 with mesh grating MW 30/30, galvanised, class B 125, with locking device
Product description
RECYFIX STANDARD 200 type 020 - channel made of modified PP, according to EN 1433, with lateral (DN/OD 110) and vertical (DN/OD 110/160) connection possibility, with mesh grating, mesh width 30/30, loading capacity from A 15 - B 125, with locking device, L/W/H 1000x256x235 mm, item no. 40676
Packaging unit
16
Declaration of Performance
Tender Texts
Installation example
Pavement class A 15 - B 125
Cemented floor class A 15 - B 125
Pavement class C 250
Pavement class A 15 - B 125
Asphalt class A 15 - B 125
Concrete class A 15 - C 250
Asphalt class C 250
Pavement class C 250
Installation instructions
