Article No. 40635
RECYFIX STANDARD 200, class B 125
Type 100 with mesh grating MW 30/30 mm, galvanised, locked, 1,0 m
Available from stock
Questions?
Our experienced planning team will be happy to help you.
Get in touch

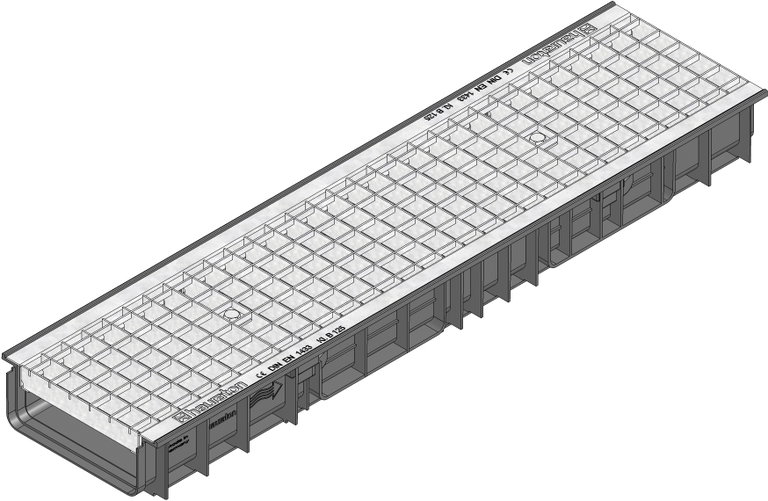

Product image
Technical drawing
Drawing (CAD)
Drawing
Top view
Data Sheet
Technical information and metrics
Article No.
40635
Length
1000 mm
Width
256 mm
Height
100 mm
Einlegetiefe
2 mm
Weight
8.32 kg
Material
Galvanised steel, hot-dip galvanised steel, recycled, modified Polypropylene
Intake cross-section
1633.0 cm²/m
Nominal size
200
Internal channel cross-section
150 cm²
Type according to DIN EN 1433
M
Channel material
recycled, modified Polypropylene
Material grating
hot-dip galvanised steel
Regulations
EN 1433, DIN 19580
Sales text
RECYFIX STANDARD 200 Channel type 100 with mesh grating MS 30/30 mm, galvanised, cl. B 125, locked, 1 m
Product description
RECYFIX STANDARD 200 type 100 - channel made of modified PP, according to EN 1433, with vertical connection possibility DN/OD 75/110, with mesh grating, mesh width 30/30, galvanised, with locking device, loading capacity from A 15 up to B 125, L/W/H 1000x256x100 mm, item no. 40635
Packaging unit
36
Declaration of Performance
Tender Texts
Installation example
Pavement class A 15 - B 125,
Cemented floor class A 15 - B 125,
Pavement class C 250,
Asphalt class A 15 - B 125,
Asphalt class C 250,
Installation instructions
