Article No. 40640
RECYFIX STANDARD 200, class C 250
Type 100 with ductile iron grating 2 x 85/20 mm, black, locked, 1,0 m
Available from stock
Questions?
Our experienced planning team will be happy to help you.
Get in touch

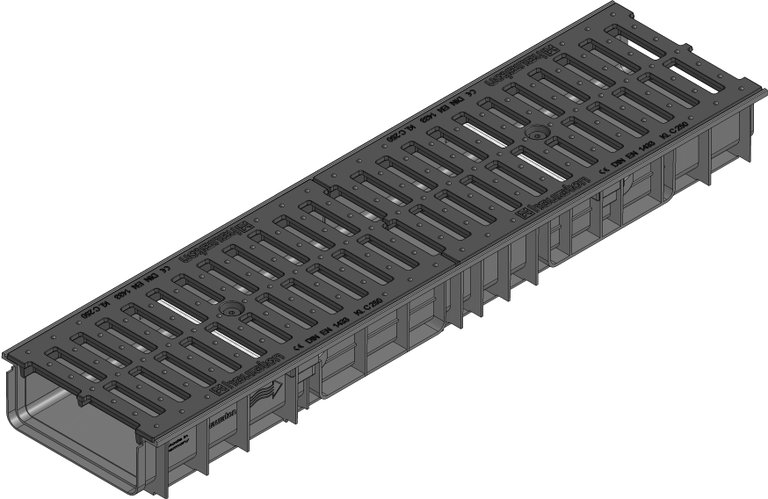

Product image
Technical drawing
Drawing (CAD)
Drawing
Top view
Data Sheet
Technical information and metrics
Article No.
40640
Length
1000 mm
Width
256 mm
Height
100 mm
Einlegetiefe
5 mm
Weight
13.92 kg
Material
Ductile iron GJS 500-7, Galvanised steel, recycled, modified Polypropylene, Steel black galvanised
Intake cross-section
822.0 cm²/m
Nominal size
200
Internal channel cross-section
150 cm²
Type according to DIN EN 1433
M
Channel material
recycled, modified Polypropylene
Material grating
Ductile iron GJS 500-7
Regulations
EN 1433, DIN 19580
Sales text
RECYFIX STANDARD 200 Type 100 with ductile iron grating, SW 20,5 mm, black, cl. C 250, locked
Product description
RECYFIX STANDARD 200 type 100 - channel made of modified PP, according to EN 1433, with vertical connection possibility DN/OD 75/110, with ductile iron grating made of spheroidal ductile iron GJS 500-7, slot width 20,5 mm, with horizontal thrust resistance and locking device, black, loading capacity from A 15 - C 250, L/W/H 1000x256x100 mm, item no. 40640
Packaging unit
36
Declaration of Performance
Tender Texts
Installation example
Pavement class A 15 - B 125
Cemented floor class A 15 - B 125
Pavement class C 250
Pavement class A 15 - B 125
Asphalt class A 15 - B 125
Concrete class A 15 - C 250
Asphalt class C 250
Pavement class C 250
Installation instructions
