Article No. 32864
RECYFIX STANDARD 300, class B 125
Type 01 with ductile iron grating, SW 2 x 127/18 mm, black, locked, 1,0 m
Available from stock
Questions?
Our experienced planning team will be happy to help you.
Get in touch

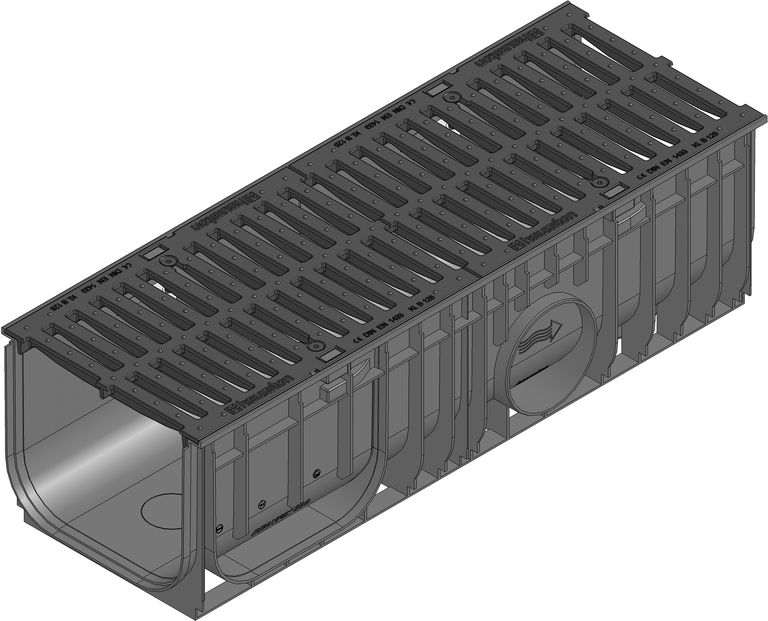

Product image
Technical drawing
Drawing (CAD)
Drawing

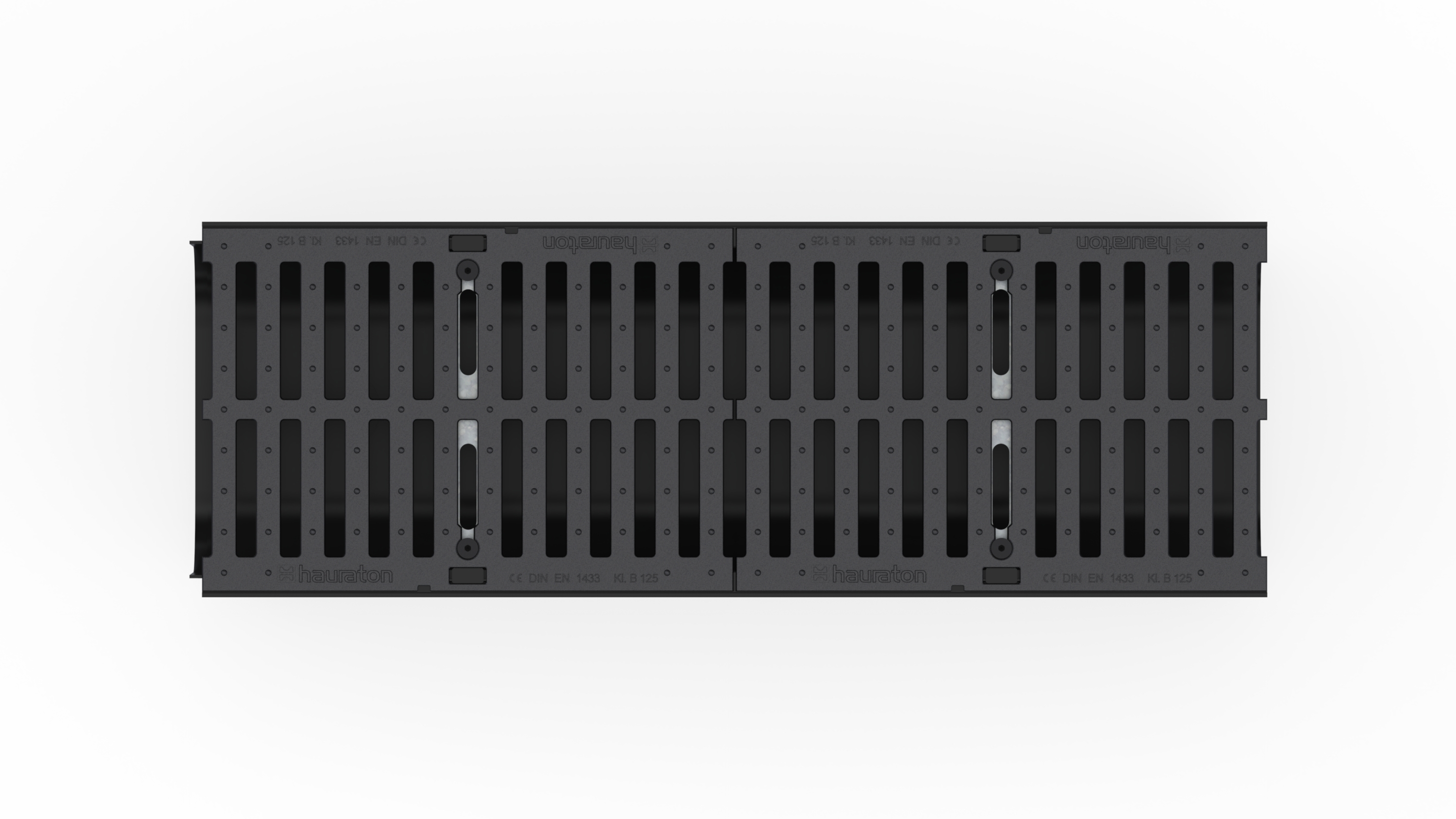

Top view
Data Sheet
Technical information and metrics
Article No.
32864
Length
1000 mm
Width
352 mm
Height
292 mm
Einlegetiefe
6 mm
Weight
22.74 kg
Material
Ductile iron GJS 500-7, PE-HD, recycled, modified Polypropylene, Steel black galvanised, strip galvanized steel
Intake cross-section
1088.0 cm²/m
Nominal size
300
Internal channel cross-section
725 cm²
Type according to DIN EN 1433
M
Channel material
recycled, modified Polypropylene
Material grating
Ductile iron GJS 500-7
Regulations
EN 1433, DIN 19580
Sales text
RECYFIX STANDARD 300 Channel type 01 with ductile iron grating 2x SW 127/18 mm, black, cl. B 125, locked, 1 m
Product description
RECYFIX STANDARD 300 Typ 01 - channel made of modified PP according EN 1422, with lateral (DN 160) and vertical (DN 160/200) connection possibility, with ductile iron grating made of spheroidal ductile iron GJS 500-7, slot width 2x127/18 mm, black, loading capacity from A 15 to B 125 according to EN 1433, with horizontal thrust resistance and locking, L/W/H 1000x352x292 mm, item no. 32864
Packaging unit
9
Declaration of Performance
Tender Texts
Installation example
Pavement class A 15 - B 125,
Cemented floor class A 15 - B 125,
Pavement class C 250,
Asphalt class A 15 - B 125,
Asphalt class C 250,
Installation instructions
