Article No. 32049
SERVICE CHANNELS FASERFIX KS 100 made of fibre-reinforced concrete with 20 mm angle housing, class E 600
Type 010, 1,0 m
Available from stock
Questions?
Our experienced planning team will be happy to help you.
Get in touch

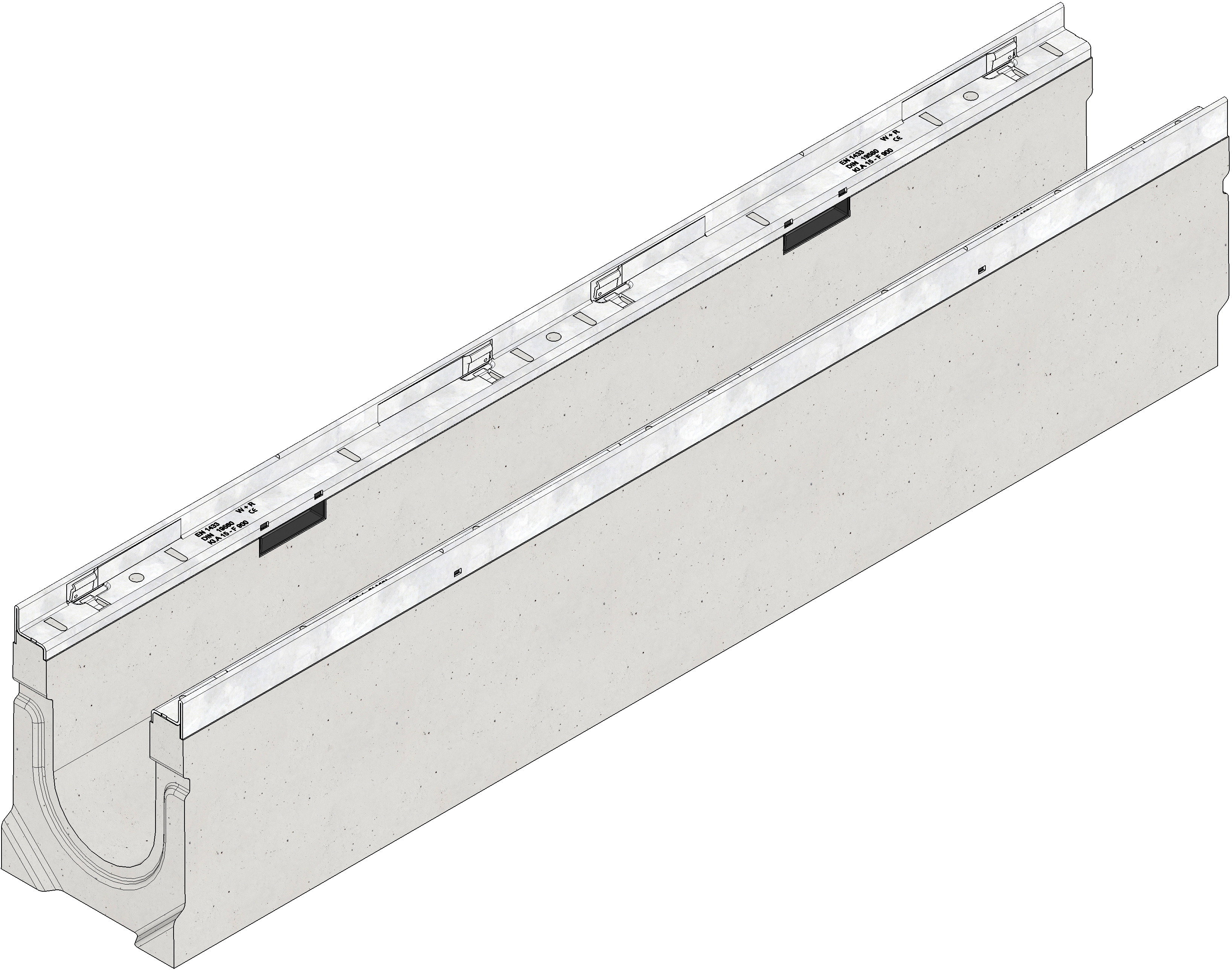

Product image
Technical drawing
Drawing (CAD)
Drawing
Data Sheet
Technical information and metrics
Article No.
32049
Length
1000 mm
Width
160 mm
Height
214 mm
Weight
40.21 kg
Material
fibre-reinforced concrete, strip galvanized steel
Height of angle housing
20 mm
Nominal size
100
Internal channel cross-section
143 cm²
Fall
-
Fixing type
Locking handle, SIDE-LOCK
Type according to DIN EN 1433
M
Channel material
fibre-reinforced concrete
angle housing material
strip galvanized steel
Regulations
EN 1433, DIN 19580
Sales text
SERVICE CHANNEL FASERFIX KS 100 Channel body type 010 with edge frames made of galvanised steel, 1 m
Product description
SERVICE channel FASERFIX KS 100 type 010 -channel made of fibre reinforced concrete, loading capacity from A 15 up to F 900 according to EN 1433, CE compliant, with galvanised steel angle housing and boltless quick-locking system SIDE-LOCK, eightfold locking, without crossing bars in the channel line, with sealing groove, L/W/H 1000x160x214 mm, item no. 32049
Packaging unit
28
Declaration of Performance
Tender Texts
Installation example
Pavement class A 15 - C 250,
Asphalt class A 15 - D 400,
Concrete class A 15 - F 900,
Pavement / large-size slab class D 400,
industrial flooring class A 15 - C 250,
industrial flooring class D 400 - F 900,
