Article No. 32054

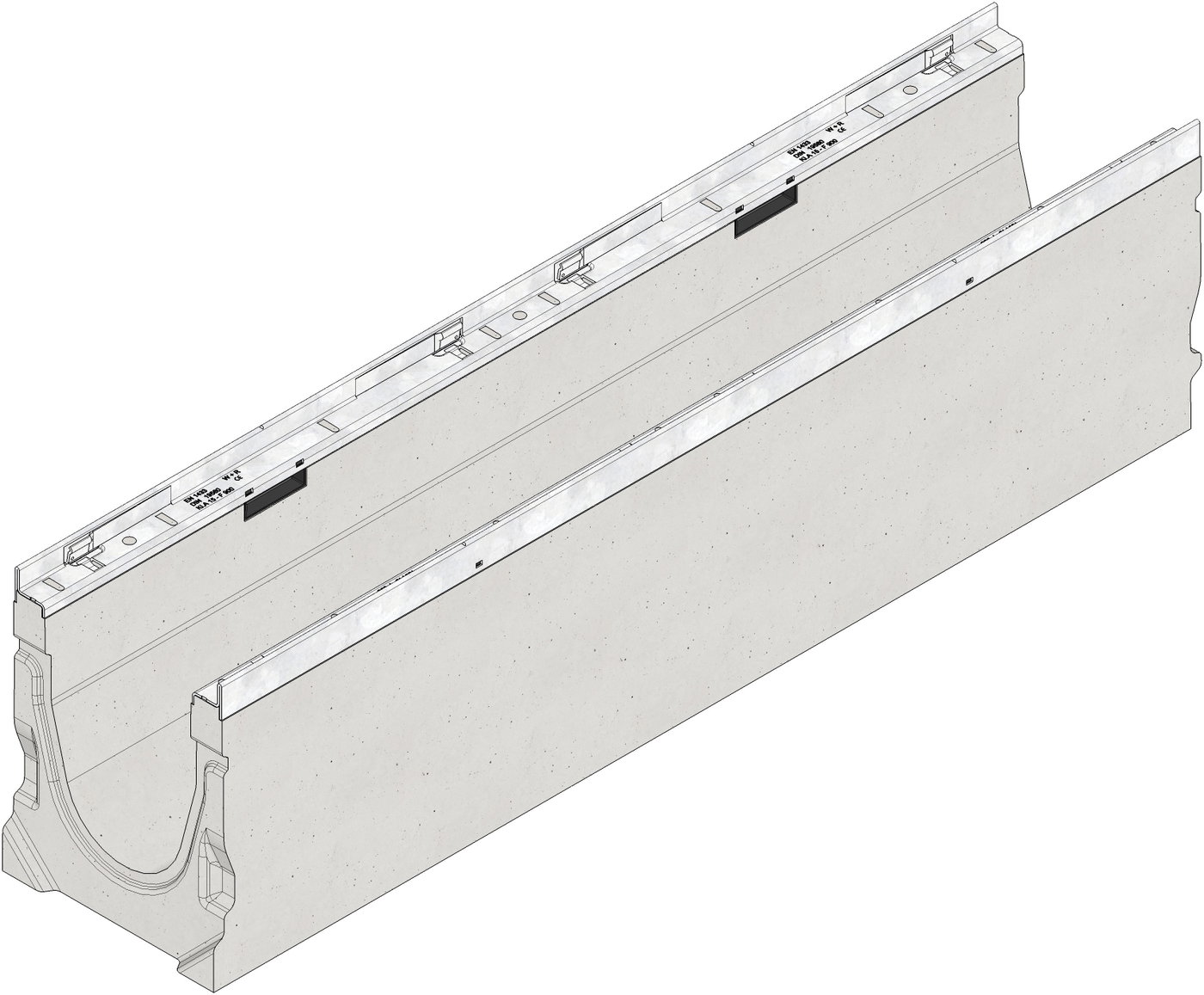

SERVICE CHANNELS FASERFIX KS 150 made of fibre-reinforced concrete with 20 mm angle housing, class E 600
Type 010, 1,0 m
Available from stock
Questions?
Our experienced planning team will be happy to help you.
Get in touch

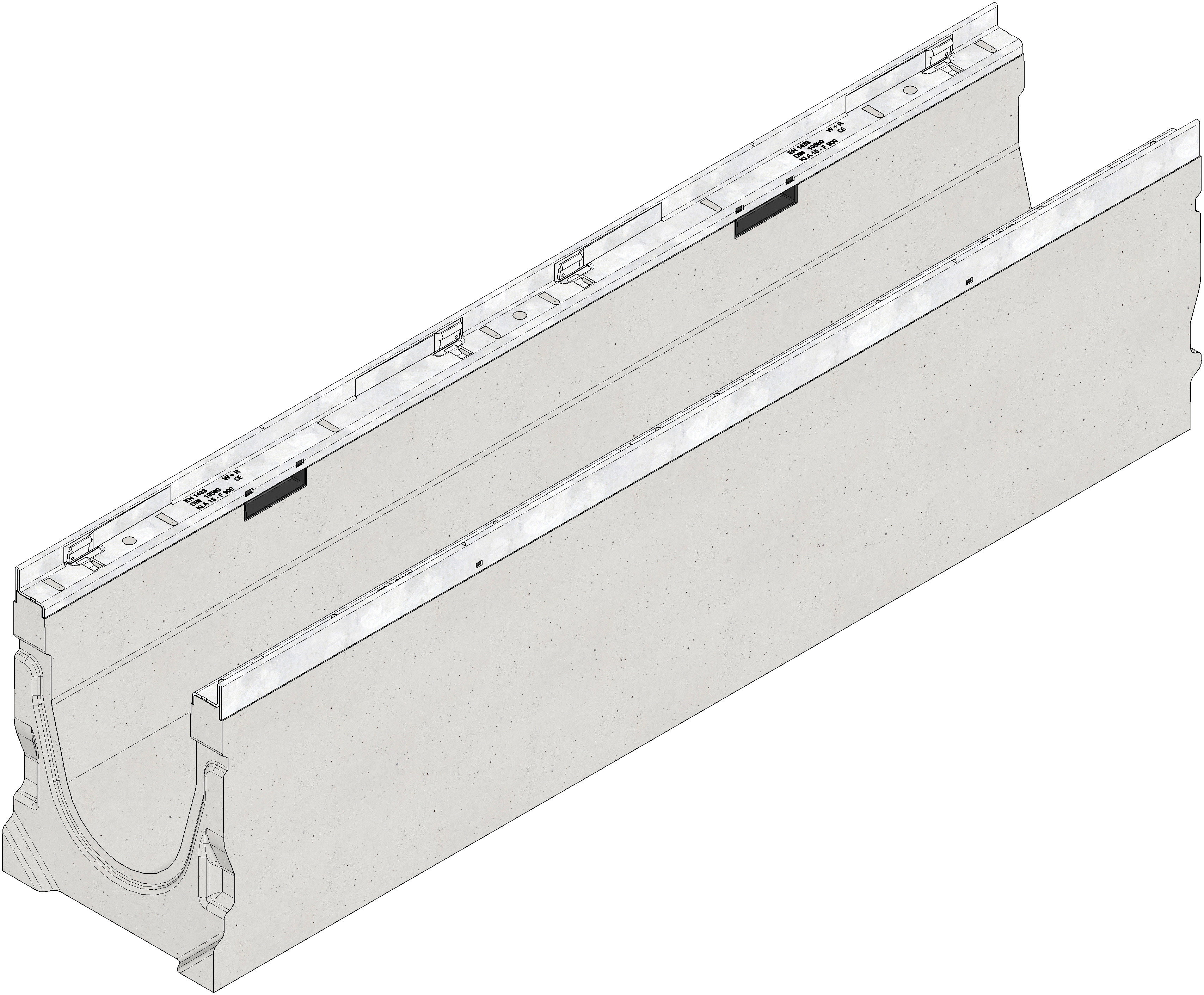

Product image
Technical drawing
Drawing (CAD)
Drawing
Data Sheet
Technical information and metrics
Article No.
32054
Length
1000 mm
Width
210 mm
Height
265 mm
Weight
60.17 kg
Material
fibre-reinforced concrete, strip galvanized steel
Height of angle housing
20 mm
Nominal size
150
Internal channel cross-section
245 cm²
Fall
-
Fixing type
Locking handle, SIDE-LOCK
Type according to DIN EN 1433
M
Channel material
fibre-reinforced concrete
angle housing material
strip galvanized steel
Regulations
EN 1433, DIN 19580
Sales text
SERVICE CHANNEL FASERFIX KS 150 Channel body type 010 with edge frames made of galvanised steel, 1 m
Product description
SERVICE channel FASERFIX KS 150 type 010 -channel made of fibre reinforced concrete, loading capacity from A 15 up to F 900 according EN 1433, CE compliant, with galvanised steel angle housing and boltless quick-locking system SIDE-LOCK, eightfold locking, without traverse webs in the channel run, with sealing groove, L/W/H 1000x210x265mm, item no. 32054
Packaging unit
15
Declaration of Performance
Tender Texts
Installation example
Pavement class A 15 - C 250,
Asphalt class A 15 - D 400,
Concrete class A 15 - F 900,
Pavement / large-size slab class D 400,
Pavement class A 15 - C 250, as double strand
Asphalt class A 15 - D 400, as double strand
Concrete class C 250 - D 400, as double strand
Pavement class D 400, as double strand
Asphalt class E 600, as double strand
Concrete class E 600,
Pavement class A 15 - C 250,
Asphalt class D 400,
Asphalt class D 400 - E 600,
Concrete class D 400 - E 600,
Pavement / large-size slab class D 400,
Concrete class E 600,
Concrete class F 900,
Pavement class A 15 - C 250, as double strand
Concrete class D 400, as double strand
Pavement class D 400, as double strand
Asphalt class E 600, as double strand
Asphalt class F 900, as double strand
Asphalt class A 15 - B 125, as double strand
Pavement class A 15 - C 250, as double strand
Asphalt class C 250, as double strand
Concrete class C 250, as double strand
Concrete class E 600,
Asphalt class A 15 - B 125, as double strand
Pavement class A 15 - C 250, as double strand
Asphalt class C 250 - D 400, as double strand
Concrete class C 250 - D 400, as double strand
Pavement class D 400, as double strand
Asphalt class E 600, as double strand
industrial flooring class A 15 - C 250,
industrial flooring class D 400 - F 900,
