Article No. 32056
SERVICE CHANNELS FASERFIX SUPER 150 made of fibre-reinforced concrete with 40 mm angle housing, class E 600
Type 01 E, 1,0 m
Available from stock
Questions?
Our experienced planning team will be happy to help you.
Get in touch

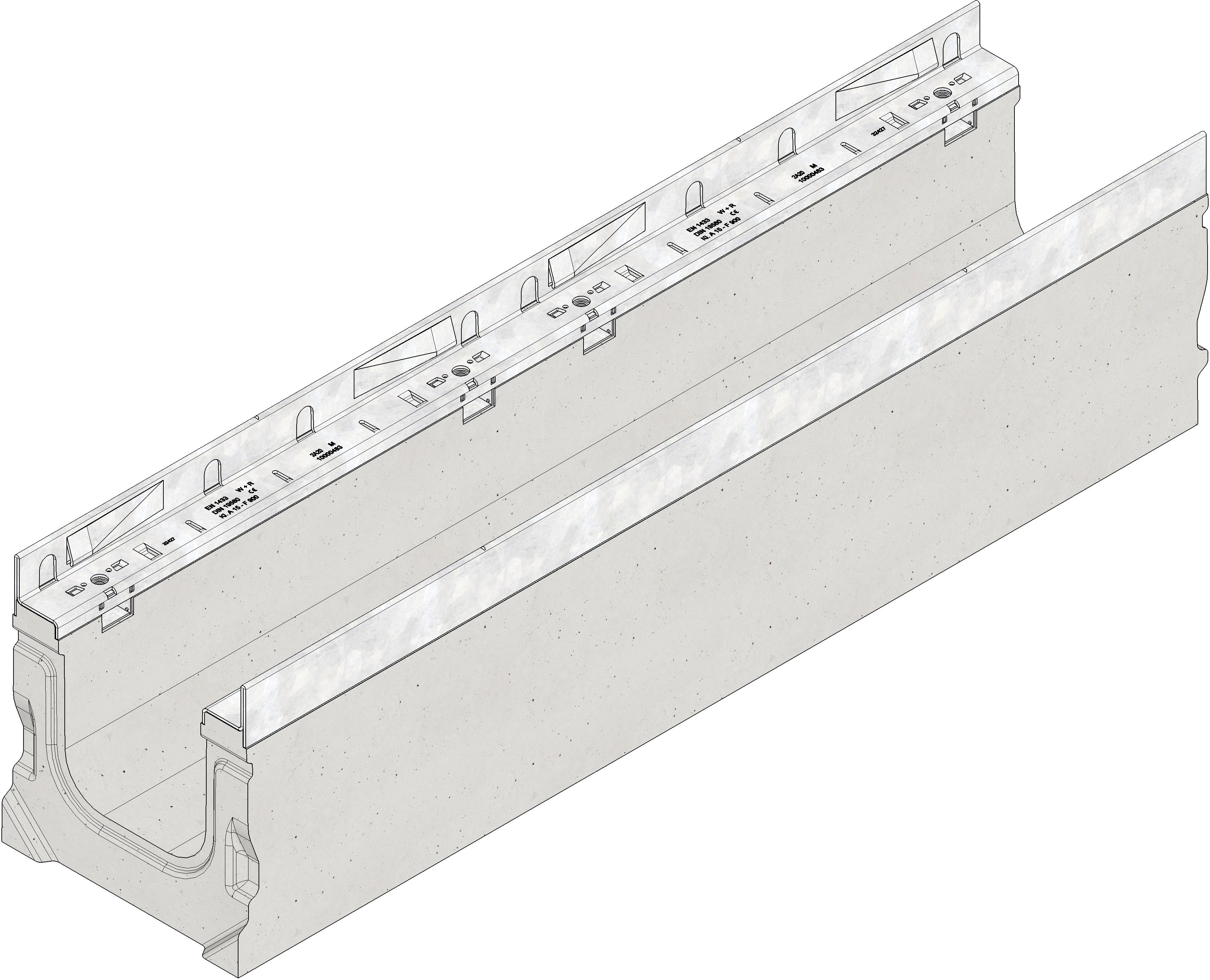

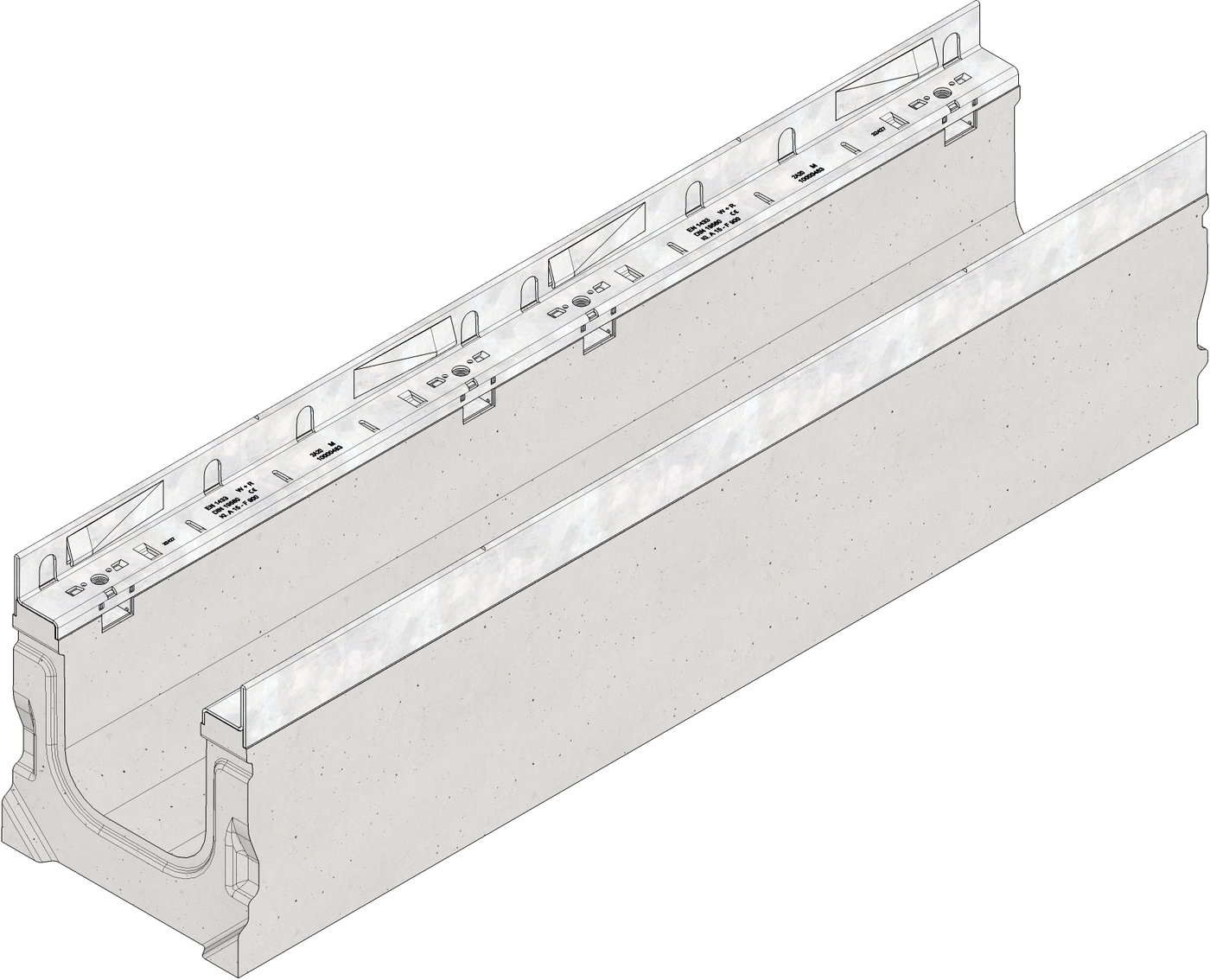

Product image
Technical drawing
Drawing
Drawing (CAD)
Data Sheet
Technical information and metrics
Article No.
32056
Length
1000 mm
Width
240 mm
Height
255 mm
Weight
80.00 kg
Material
fibre-reinforced concrete, strip galvanized steel
Height of angle housing
40 mm
Nominal size
150
Internal channel cross-section
223 cm²
Fall
-
Fixing type
SIDE-LOCK, Bolting
Type according to DIN EN 1433
M
Channel material
fibre-reinforced concrete
angle housing material
strip galvanized steel
Regulations
EN 1433, DIN 19580
Sales text
SERVICE CHANNEL FASERFIX SUPER 150 Channel body type 01 angular with edge frames made of galvanised steel, 1 m
Product description
SERVICE channel FASERFIX SUPER 150 type 01 angular -channel made of fibre reinforced concrete, loading capacity from A 15 up to E 600 according to EN 1433, CE compliant, with galvanised steel angle housing and boltless quick-locking system SIDE-LOCK, eightfold locking, without crossing bars in the channel line, with sealing groove, grating inlay depth 40 mm, L/W/H 1000x240x255 mm, item no. 32056
Packaging unit
15
Declaration of Performance
Tender Texts
Installation example
Pavement class A 15 - C 250,
Asphalt class A 15 - D 400,
Concrete class A 15 - F 900,
Pavement / large-size slab class D 400,
Pavement class A 15 - C 250, as double strand
Asphalt class A 15 - D 400, as double strand
Concrete class C 250 - D 400, as double strand
Pavement class D 400, as double strand
Asphalt class E 600, as double strand
Concrete class E 600,
Pavement class A 15 - C 250,
Asphalt class D 400,
Asphalt class D 400 - E 600,
Concrete class D 400 - E 600,
Pavement / large-size slab class D 400,
Concrete class E 600,
Concrete class F 900,
Pavement class A 15 - C 250, as double strand
Concrete class D 400, as double strand
Pavement class D 400, as double strand
Asphalt class E 600, as double strand
Asphalt class F 900, as double strand
Asphalt class A 15 - B 125, as double strand
Pavement class A 15 - C 250, as double strand
Asphalt class C 250, as double strand
Concrete class C 250, as double strand
Concrete class E 600,
Asphalt class A 15 - B 125, as double strand
Pavement class A 15 - C 250, as double strand
Asphalt class C 250 - D 400, as double strand
Concrete class C 250 - D 400, as double strand
Pavement class D 400, as double strand
Asphalt class E 600, as double strand
industrial flooring class A 15 - C 250,
industrial flooring class D 400 - F 900,
