Article No. 32073
SERVICE CHANNEL FASERFIX SUPER 200 made of fibre-reinforced concrete with 40 mm angle housing, class E 600
Ductile iron solid cover, black, with plastic caps, 0,5 m
Available from stock
Questions?
Our experienced planning team will be happy to help you.
Get in touch

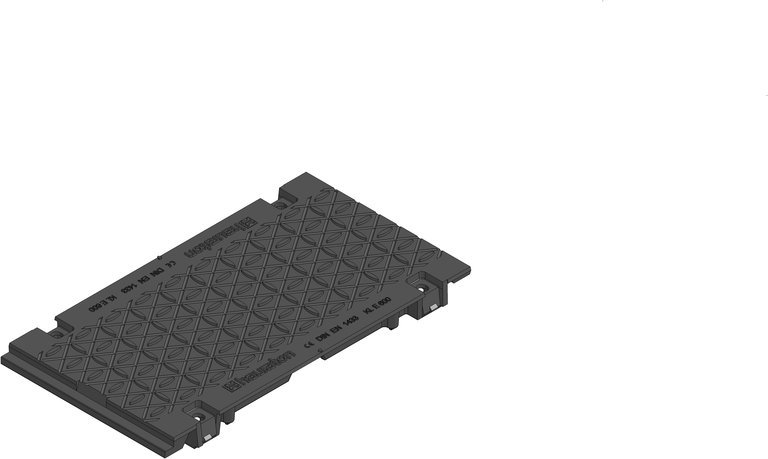

Product image
Technical drawing
Drawing (CAD)
Drawing
Data Sheet
Technical information and metrics
Article No.
32073
Length
500 mm
Width
279 mm
Height
55 mm
Einlegetiefe
40 mm
Weight
13.40 kg
Material
Ductile iron GJS 500-7
Intake cross-section
0.0 cm²/m
Nominal size
200
Inlet opening
0 mm
Fixing type
Anti-vandal locking catch, SIDE-LOCK, Bolting
Material grating
Ductile iron GJS 500-7
Regulations
EN 1433, DIN 19580
Sales text
Ductile iron grating closed, black, with UPVC caps black, cl. E 600, SERVICE CHANNEL FASERFIX SUPER 200, 0,5 m
Product description
SERVICE CHANNEL FASERFIX SUPER 200 - Solid ductile iron cover, black, loading capacity from A 15 up to E 600 according to DIN19580 / EN 1433, CE-conform, L: 500mm, 4-times locking, with plastic pins, Item No. 32073
Packaging unit
84
Declaration of Performance
