Article No. 32088
SERVICE CHANNEL FASERFIX SUPER 300 made of fibre-reinforced concrete with 40 mm angle housing, class E 600
Ductile iron solid cover, black, 0,5 m
Available from stock
Questions?
Our experienced planning team will be happy to help you.
Get in touch

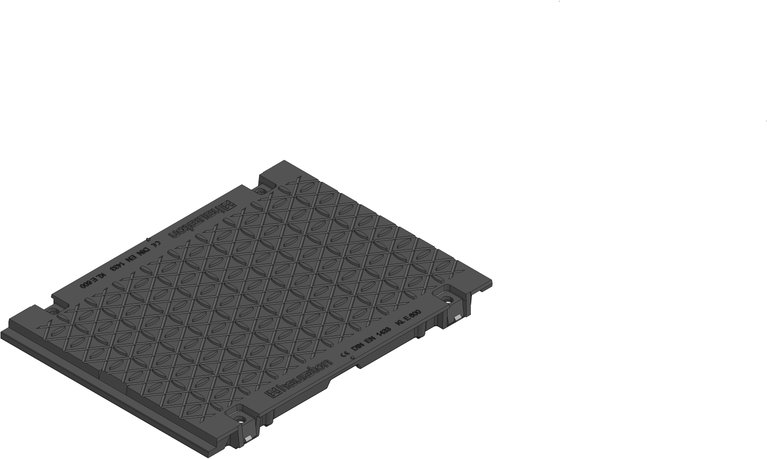

Product image
Technical drawing
Drawing (CAD)
Drawing
Data Sheet
Technical information and metrics
Article No.
32088
Length
500 mm
Width
379 mm
Height
61 mm
Einlegetiefe
40 mm
Weight
21.50 kg
Material
Ductile iron GJS 500-7
Intake cross-section
0.0 cm²/m
Nominal size
300
Inlet opening
0 mm
Regulations
SIDE-LOCK, Bolting
Material grating
Ductile iron GJS 500-7
Regulations
EN 1433, DIN 51130, DIN 19580, EN 16165
Regulations
Ductile iron grating closed, black, cl. E 600, SERVICE CHANNEL FASERFIX SUPER 300, 0.5 m
Regulations
SERVICE CHANNEL FASERFIX SUPER 300 - ductile iron grating, closed, black, loading capacity from A 15 up to E 600, according to DIN 19580 / EN 1433, CE-conform, 4-times locking, length 500 mm, Item No. 32088
Regulations
50
Declaration of Performance
