Article No. 32086

SERVICE CHANNELS FASERFIX SUPER 300 made of fibre-reinforced concrete with 40 mm angle housing, class E 600

Type 01 E, 1,0 m

Available from stock

Questions?

Our experienced planning team will be happy to help you.

Get in touch

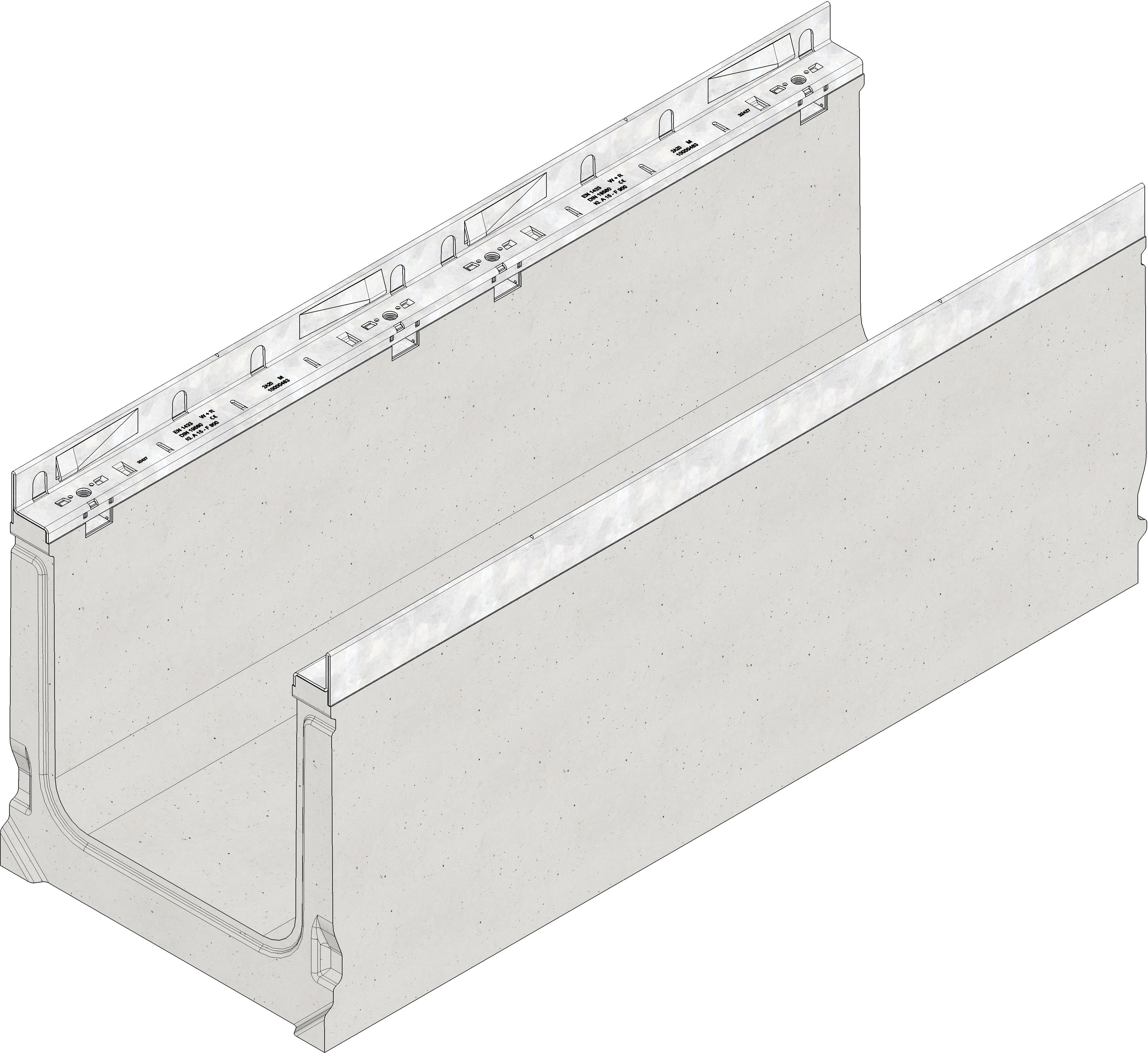

Product image

Technical drawing

Drawing (CAD)

Data Sheet

Technical information and metrics

Article No.
32086
Length
1000 mm
Width
390 mm
Height
415 mm
Weight
133.65 kg
Material
fibre-reinforced concrete, strip galvanized steel
Height of angle housing
40 mm
Nominal size
300
Internal channel cross-section
900 cm²
Fall
-
Fixing type
SIDE-LOCK, Bolting
Type according to DIN EN 1433
M
Channel material
fibre-reinforced concrete
angle housing material
strip galvanized steel
Regulations
EN 1433, DIN 19580
Sales text
SERVICE CHANNEL FASERFIX SUPER 300 Channel body type 01 angular with edge frames made of galvanised steel, 1 m
Product description
SERVICE channel FASERFIX SUPER 300 type 01 angular -channel made of fibre reinforced concrete, loading capacity from A 15 up to E 600 according to EN 1433, CE compliant, with galvanised steel angle housing and boltless quick-locking system SIDE-LOCK, eightfold locking, without crossing bars in the channel line, with sealing groove, L/W/H 1000x390x415 mm, item no. 32086
Packaging unit
6

Declaration of Performance

Tender Texts

Installation example

Pavement class A 15 - C 250,

Asphalt class A 15 - D 400,

Pavement / large-size slab class D 400,

Concrete class E 600,

Pavement class A 15 - C 250, as double strand

Asphalt class A 15 - D 400, as double strand

Concrete class C 250 - D 400, as double strand

Pavement class D 400, as double strand

Asphalt class E 600, as double strand

Concrete class A 15 - E 600,

Pavement class A 15 - C 250,

Asphalt class D 400,

Asphalt class D 400 - E 600,

Concrete class D 400 - E 600,

Pavement / large-size slab class D 400,

Concrete class E 600,

Concrete class F 900,

Pavement class A 15 - C 250, as double strand

Concrete class D 400, as double strand

Pavement class D 400, as double strand

Asphalt class E 600, as double strand

Asphalt class F 900, as double strand

Concrete class E 600,

Asphalt class A 15 - B 125, as double strand

Pavement class A 15 - C 250, as double strand

Asphalt class C 250 - D 400, as double strand

Concrete class C 250 - D 400, as double strand

Pavement class D 400, as double strand

Asphalt class E 600, as double strand

Asphalt class A 15 - B 125,

Pavement class A 15 - B 125,

Concrete class A 15 - C 250,

Asphalt class C 250,

Pavement class C 250,

Asphalt class A 15 - B 125, as double strand

Pavement class A 15 - C 250, as double strand

Asphalt class C 250, as double strand

Concrete class C 250, as double strand

industrial flooring class A 15 - C 250,

industrial flooring class D 400 - F 900,
