Article No. 33033
SERVICE CHANNELS FASERFIX SUPER 400 made of fibre-reinforced concrete with 40 mm angle housing, class E 600
Ductile iron grating closed, KTL-coated, 0,5 m
Available from stock
Questions?
Our experienced planning team will be happy to help you.
Get in touch

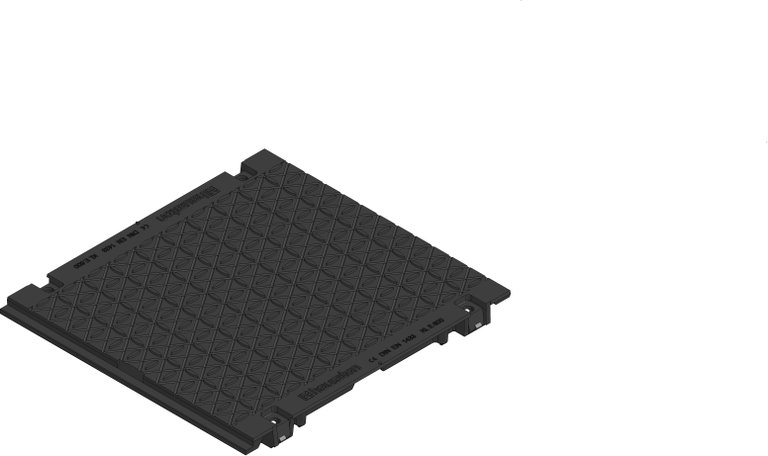

Product image
Technical drawing
Drawing (CAD)
Drawing
Data Sheet
Technical information and metrics
Article No.
33033
Length
500 mm
Width
479 mm
Height
63 mm
Einlegetiefe
40 mm
Weight
32.50 kg
Material
Ductile iron GJS 500-7 with KTL-coating
Intake cross-section
0.0 cm²/m
Nominal size
400
Inlet opening
0 mm
Fixing type
SIDE-LOCK, Bolting
Material grating
Ductile iron GJS 500-7 with KTL-coating
Regulations
EN 1433, DIN 19580
Sales text
Ductile iron grating closed, KTL-coated, cl. E 600, SERVICE CHANNEL FASERFIX SUPER 400, 0.5 m
Product description
MEDIENRINNE FASERFIX SUPER 400 - ductile iron grating made of spheroidal ductile iron GJS 500-7, closed, KTL coated, loading capacity from A 15 - E 600 according EN 1433, with horizontal thrust resistance, CE compliant, fourfold locking, installation length 500 mm, item no. 33033
Packaging unit
-
Declaration of Performance
