Article No. 32102
SERVICE CHANNEL FASERFIX SUPER 500 made of fibre-reinforced concrete with 40 mm angle housing, class E 600
Ductile iron solid cover, black, with plastic caps, 0,5 m
Available from stock
Questions?
Our experienced planning team will be happy to help you.
Get in touch

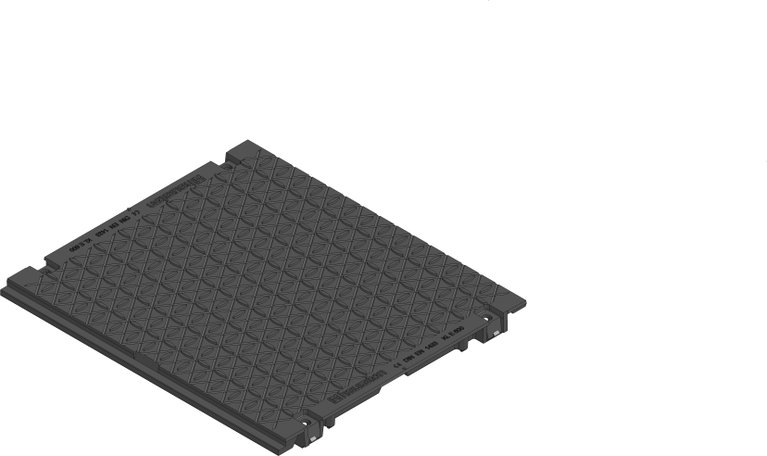

Product image
Technical drawing
Drawing (CAD)
Drawing
Data Sheet
Technical information and metrics
Article No.
32102
Length
500 mm
Width
579 mm
Height
76 mm
Einlegetiefe
40 mm
Weight
42.00 kg
Material
Ductile iron GJS 500-7
Intake cross-section
0.0 cm²/m
Nominal size
500
Inlet opening
0 mm
Fixing type
SIDE-LOCK, Bolting
Material grating
Ductile iron GJS 500-7
Regulations
EN 1433, DIN 19580
Sales text
Ductile iron grating closed, black, with UPVC caps black, cl. E 600, SERVICE CHANNEL FASERFIX SUPER 500, 0,5 m
Product description
SERVICE CHANNEL FASERFIX SUPER 500 - Ductile iron grating, closed, black, loading capacity from A 15 up to E 600 according DIN 19580 / EN 1433, CE-conform, 4-times locking, with plastic pins, L: 500 mm, Item No. 32102
Packaging unit
24
Declaration of Performance
