Article No. 32075
SERVICE CHANNEL RECYFIX PRO 200 made of polypropylene with 20 mm integrated polypropylene angle housing, class C 250
Ductile iron solid cover with opening for cables, KTL-coated, 0,5 m
Available from stock
Questions?
Our experienced planning team will be happy to help you.
Get in touch

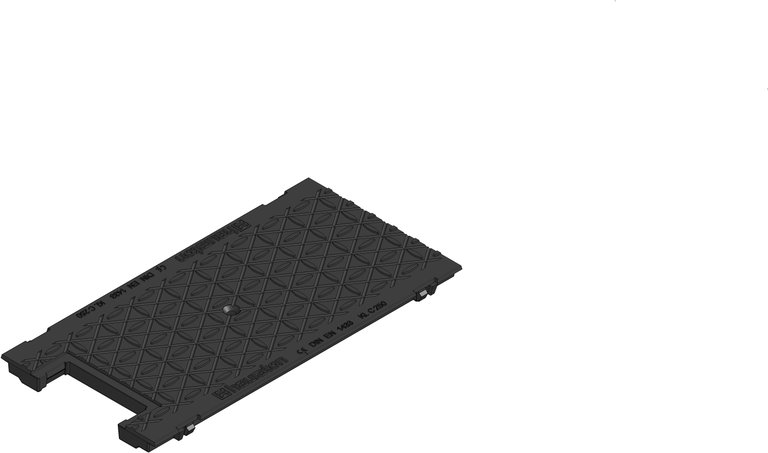

Product image
Technical drawing
Drawing
Drawing (CAD)
Data Sheet
Technical information and metrics
Article No.
32075
Length
500 mm
Width
249 mm
Height
35 mm
Einlegetiefe
20 mm
Weight
8.09 kg
Material
Ductile iron GJS 500-7 with KTL-coating
Intake cross-section
0.0 cm²/m
Nominal size
200
Inlet opening
0 mm
Fixing type
Loose blatant, Locking handle
Material grating
Ductile iron GJS 500-7 with KTL-coating
Regulations
EN 1433, DIN 19580
Sales text
Ductile iron grating with opening for cables, KTL ,black, cl. C 250, SERVICE CHANNEL RECYFIX PRO 200, 0,5 m
Product description
SERVICE CHANNEL RECYFIX PRO 200 - Ductile iron grating with opening for cables, KTL-coated, loading capacity from A 15 up to C 250 according to EN 1433, CE-conform, with locking option, L: 500 mm, Item No. 32075
Packaging unit
108
Declaration of Performance
