Article No. 32087
SERVICE CHANNELS RECYFIX PRO 300 made of polypropylene with 20 mm integrated polypropylene angle housing, class C 250
Type 010, 1,0 m
Available from stock
Questions?
Our experienced planning team will be happy to help you.
Get in touch

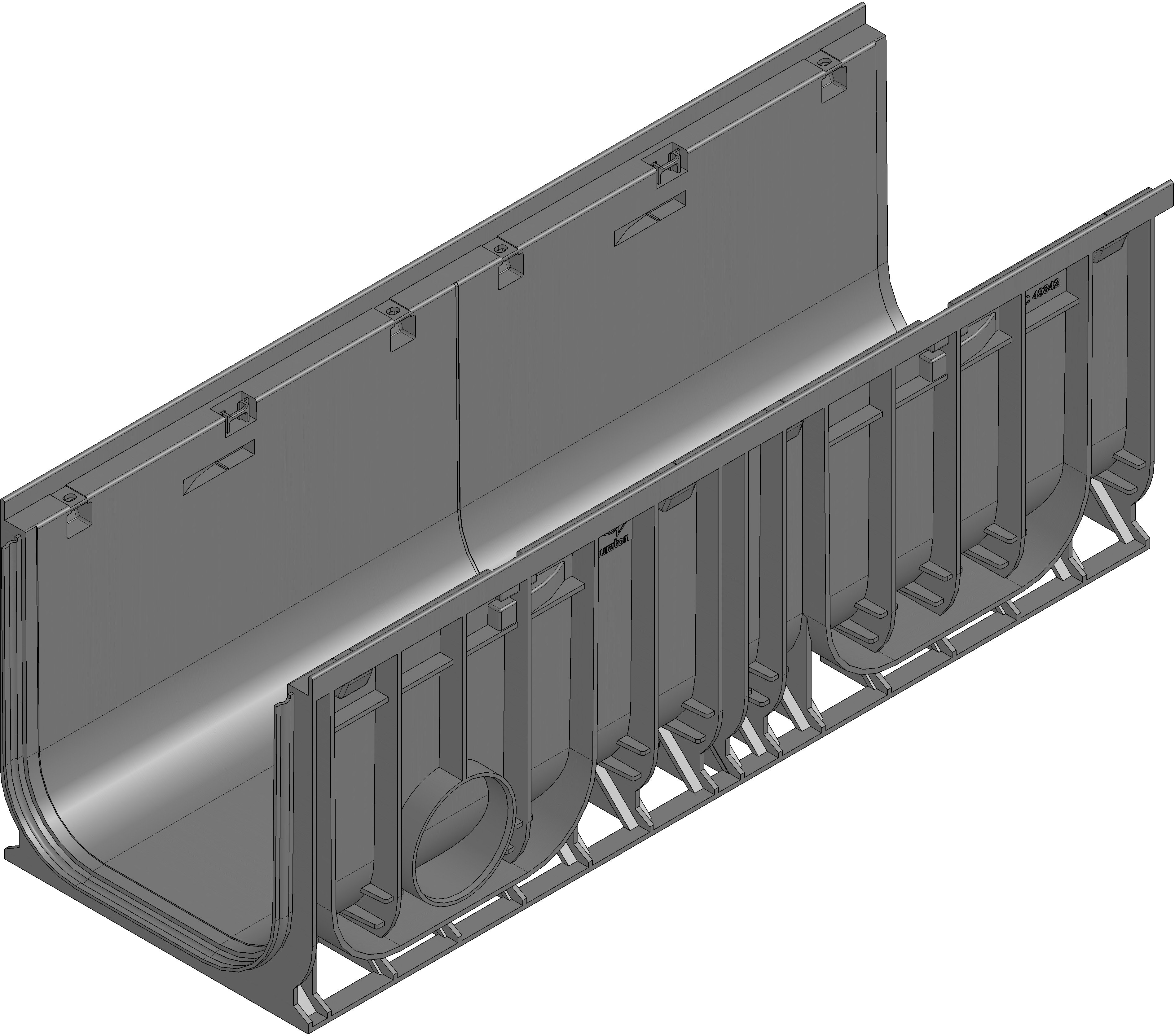

Product image
Technical drawing
Drawing (CAD)

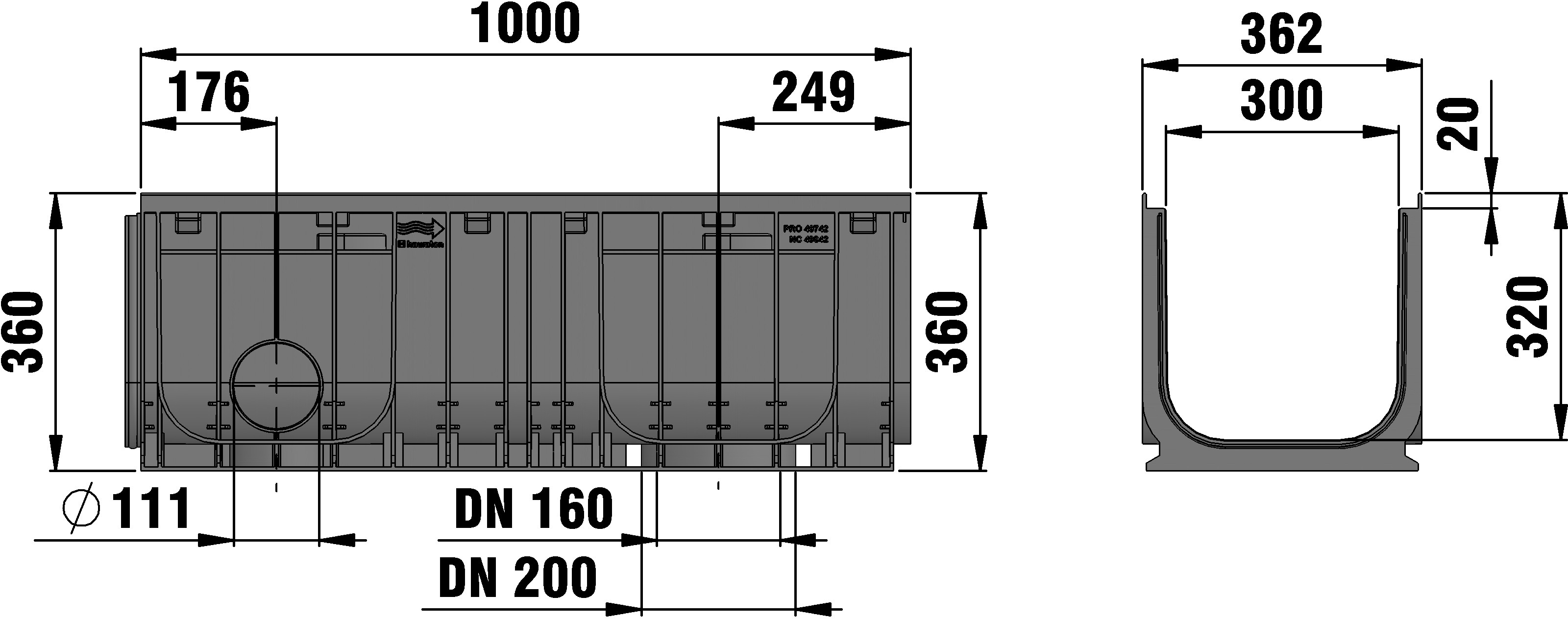

Drawing
Data Sheet
Technical information and metrics
Article No.
32087
Length
1000 mm
Width
362 mm
Height
360 mm
Weight
7.64 kg
Material
recycled, modified Polypropylene
Height of angle housing
20 mm
Nominal size
300
Internal channel cross-section
873 cm²
Fall
-
Fixing type
Locking handle
Type according to DIN EN 1433
M
Channel material
recycled, modified Polypropylene
Regulations
EN 1433, DIN 19580
Sales text
SERVICE CHANNEL RECYFIX PRO 300 Channel body type 010 with integrated edge frames, 1 m
Product description
SERVICE channel RECYFIX PRO 300 type 010 - channel made of modified PP, with integrated angle housing, with vertical connection possibility (DN/OD 160/200) , loading capacity from A 15 - D 400 according to EN 1433, L/W/H 1000x362x360 mm, item no. 32087
Packaging unit
9
Declaration of Performance
Tender Texts
Installation example
Pavement class A 15 - C 250,
Asphalt class A 15 - D 400,
Pavement / large-size slab class D 400,
Concrete class E 600,
Pavement class A 15 - C 250, as double strand
Asphalt class A 15 - D 400, as double strand
Concrete class C 250 - D 400, as double strand
Pavement class D 400, as double strand
Asphalt class E 600, as double strand
Concrete class A 15 - E 600,
Pavement class A 15 - C 250,
Asphalt class D 400,
Asphalt class D 400 - E 600,
Concrete class D 400 - E 600,
Pavement / large-size slab class D 400,
Concrete class E 600,
Concrete class F 900,
Pavement class A 15 - C 250, as double strand
Concrete class D 400, as double strand
Pavement class D 400, as double strand
Asphalt class E 600, as double strand
Asphalt class F 900, as double strand
Concrete class E 600,
Asphalt class A 15 - B 125, as double strand
Pavement class A 15 - C 250, as double strand
Asphalt class C 250 - D 400, as double strand
Concrete class C 250 - D 400, as double strand
Pavement class D 400, as double strand
Asphalt class E 600, as double strand
Asphalt class A 15 - B 125,
Pavement class A 15 - B 125,
Concrete class A 15 - C 250,
Asphalt class C 250,
Pavement class C 250,
Asphalt class A 15 - B 125, as double strand
Pavement class A 15 - C 250, as double strand
Asphalt class C 250, as double strand
Concrete class C 250, as double strand
industrial flooring class A 15 - C 250,
industrial flooring class D 400 - F 900,
