Article No. 10301
STEELFIX SLOT D, Construction height 150 mm, neck height 100 mm, class A 15
Type 150, asymmetric, perforated on one side, galvanised, 1,0 m
Available from stock
Questions?
Our experienced planning team will be happy to help you.
Get in touch

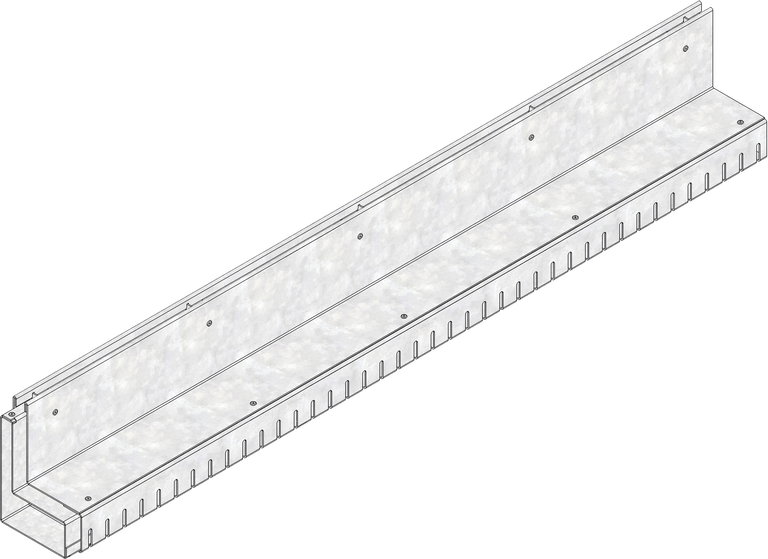

Product image
Technical drawing
Drawing (CAD)
Drawing
Data Sheet
Technical information and metrics
Article No.
10301
Length
1000 mm
Width
100 mm
Height
150 mm
Weight
6.33 kg
Material
strip galvanized steel
Height of angle housing
-
Intake cross-section
0.0 cm²/m
Nominal size
100
Internal channel cross-section
-
Fall
-
Inlet opening
1000 x 12 mm
Type according to DIN EN 1433
M
Sales text
STEELFIX SLOT 100 type 150, SW 12 mm, neck height 100 mm, galvanised, asymmetric, perforated on one side, cl. A 15, with connector, 1 m
Product description
Slotted channel FLAT 100 type 150, made of galvanised steel, asymmetric inlet slot, perforated on one side, loading class A 15, slot width 12 mm, neck height 100 mm, with connector as clampable connection between channel elements and/or inspectionbox, L/W/H 1000x100x150 mm, item no. 10301
Packaging unit
-
Tender Texts
Installation example
Pavement / large-size slab class A 15, STEELFIX SLOT D
