Article No. 32301
SLOTTED COVERS 100, neck height 105 mm, class A 15
Acess cover asymmetrical, SW 10 mm, galvanised, 0,5 m
Available from stock
Questions?
Our experienced planning team will be happy to help you.
Get in touch

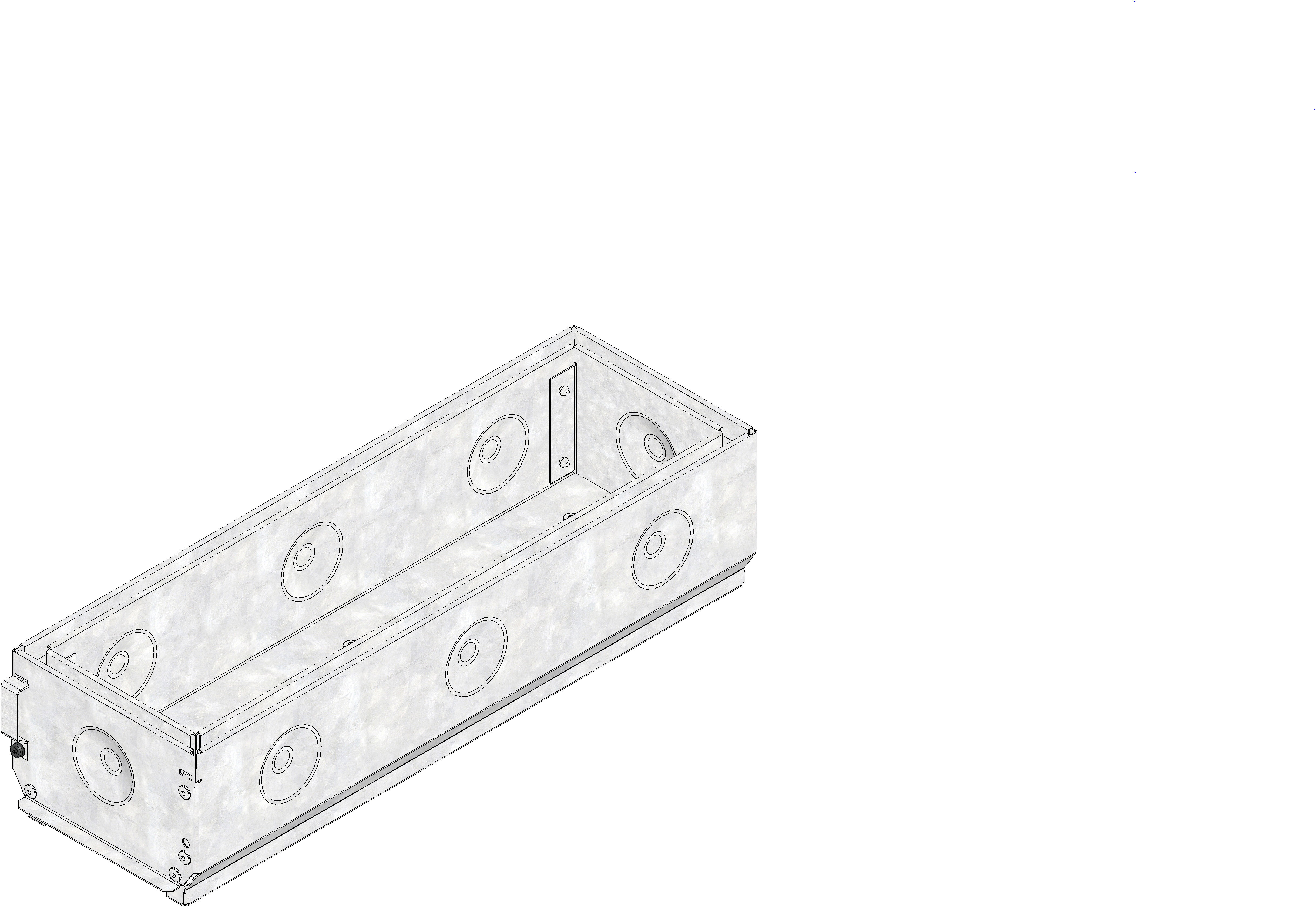

Product image
Technical drawing
Drawing
Drawing (CAD)
Data Sheet
Technical information and metrics
Article No.
32301
Length
500 mm
Width
163 mm
Height
133 mm
Einlegetiefe
125 mm
Weight
3.75 kg
Material
strip galvanized steel
Intake cross-section
251.0 cm²/m
Nominal size
100
Inlet opening
500 x 10 mm
Material grating
strip galvanized steel
Regulations
in accordance with EN 1433
Regulations
Access cover SW 10 mm, neck height 105 mm, galvanised, asymmetric, cl. A 15, FASERFIX KS/ FASERFIX STANDARD/ RECYFIX PRO 100, 0.5 m
Regulations
FASERFIX KS/ FASERFIX STANDARD/ RECYFIX PRO 100 -Access box for slotted cover slot width 10 mm, neck height 105 mm, galvanised, asymmetric, loading capacity A 15, length 500 mm, item no. 32301
Regulations
84
Declaration of Performance
