Article No. 32245
SLOTTED COVERS 100, neck height 105 mm, class A 15
Asymmetrical SW 10 mm, galvanised, 1,0 m
Available from stock
Questions?
Our experienced planning team will be happy to help you.
Get in touch

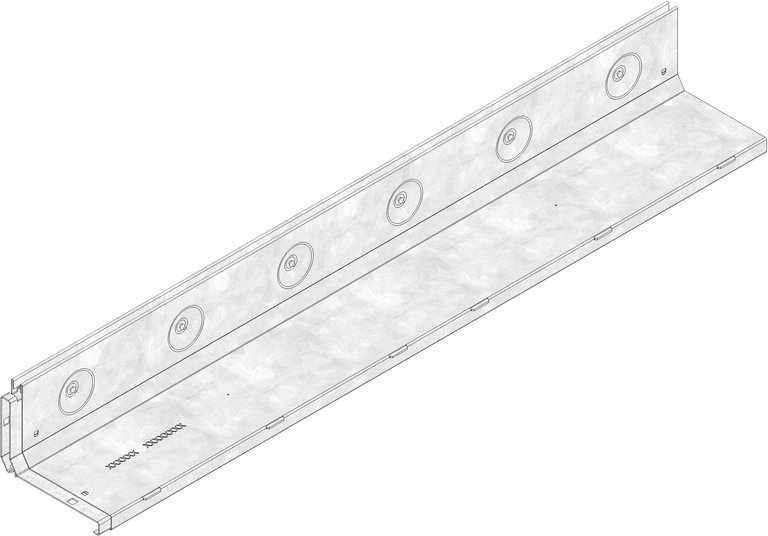

Product image
Technical drawing
Drawing
Drawing (CAD)
Data Sheet
Technical information and metrics
Article No.
32245
Length
1000 mm
Width
155 mm
Height
133 mm
Einlegetiefe
125 mm
Weight
4.71 kg
Material
strip galvanized steel
Intake cross-section
0.0 cm²/m
Nominal size
100
Inlet opening
1000 x 10 mm
Regulations
EN 1433
Regulations
Slotted cover SW 10 mm, neck height 105 mm, galvanised, asymmetric, with integrated, full-surface connector, cl. A 15, FASERFIX KS/ FASERFIX STANDARD/ RECYFIX PRO 100, 1 m
Regulations
FASERFIX KS/ FASERFIX STANDARD/ RECYFIX PRO 100, - Slotted cover slot width 10 mm, neck height 105 mm, galvanised, asymmetric, with integrated, full-surface connection element, loading capacity A 15, length 1000 mm, item no. 32245
Regulations
80
Declaration of Performance
Tender Texts
Installation example
Pavement class A 15
Pavement class B 125
Pavement class C 250
Pavement class C 250
Asphalt class D 400
Asphalt class D 400
Pavement class D 400
Asphalt class D 400
Concrete class E 600
Pavement class D 400
Installation instructions
