Article No. 33055
SLOTTED COVERS 100, neck height 105 mm, class A 15
Asymmetrical SW 10 mm, stainless steel 1.4404, 0,5 m
Available from stock
Questions?
Our experienced planning team will be happy to help you.
Get in touch

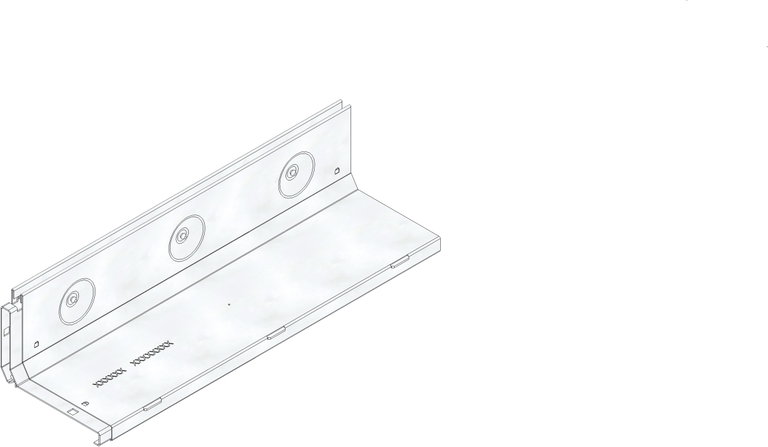

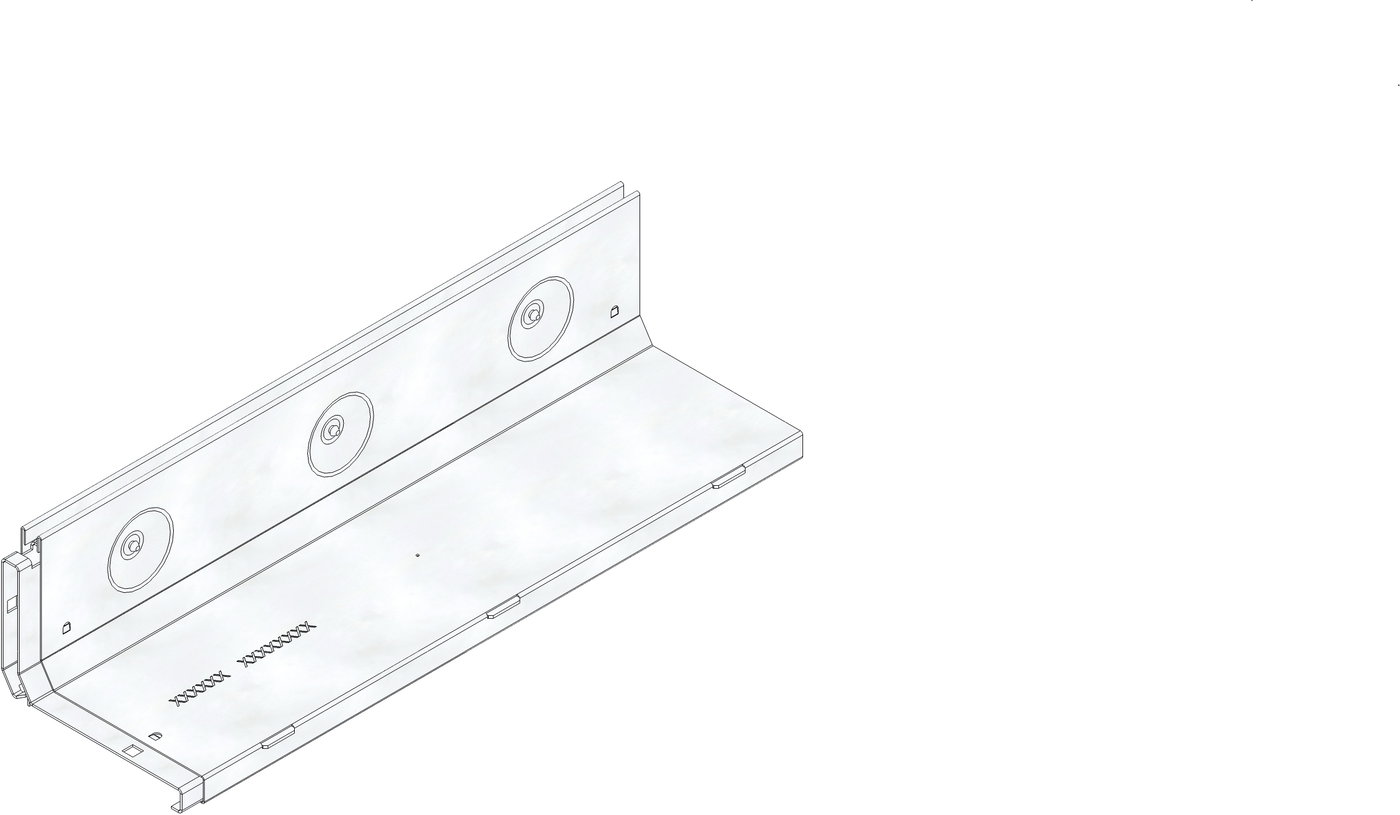

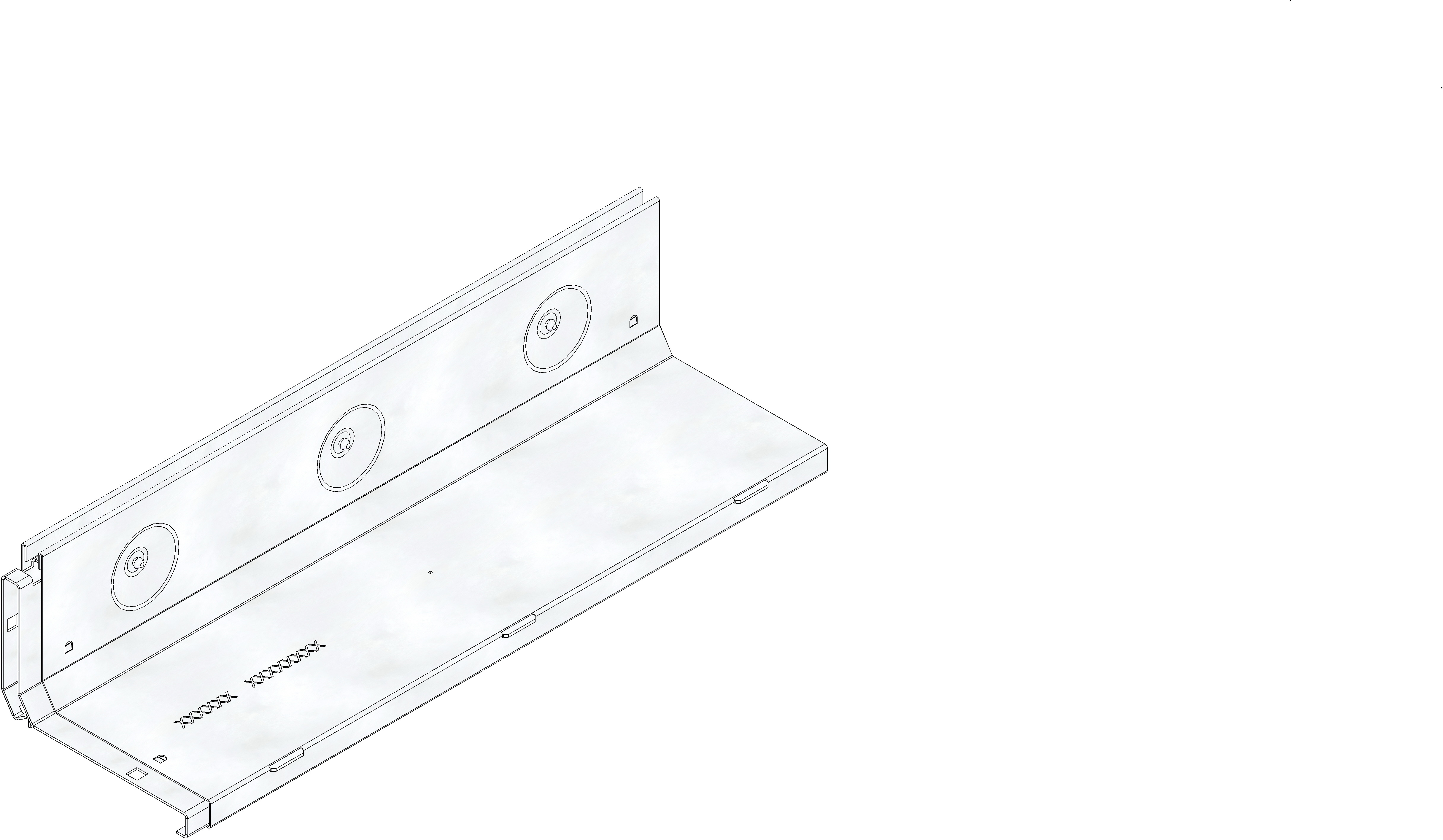

Product image
Technical drawing
Drawing (CAD)
Drawing
Data Sheet
Technical information and metrics
Article No.
33055
Length
500 mm
Width
155 mm
Height
133 mm
Einlegetiefe
125 mm
Weight
2.34 kg
Material
Stainless steel 1.4404
Intake cross-section
0.0 cm²/m
Nominal size
100
Inlet opening
500 x 10 mm
Regulations
EN 1433
Sales text
Slotted cover SW 10 mm, neck height 105 mm, stainless steel CNS 1.4404 (AISI 316 L), asymmetric, with integrated, full-surface connection element, cl. A 15, FASERFIX KS/ FASERFIX STANDARD/ RECYFIX PRO 100, 0,5 m
Product description
FASERFIX KS/ FASERFIX STANDARD/ RECYFIX PRO 100 -Slotted cover SW 10 mm, neck height 105 mm, stainless steel CNS 1.4404 (AISI 316 L), asymmetric, with integrated, full-surface connection element loading capacity A 15, length 500 mm, item no. 33055
Packaging unit
-
Declaration of Performance
Tender Texts
Installation example
Pavement class A 15
Pavement class B 125
Pavement class C 250
Pavement class C 250
Asphalt class D 400
Asphalt class D 400
Pavement class D 400
Asphalt class D 400
Concrete class E 600
Pavement class D 400
Installation instructions
