Article No. 32246
SLOTTED COVERS 100, neck height 105 mm, class A 15
Asymmetrical SW 10 mm, stainless steel, 1,0 m
Available from stock
Questions?
Our experienced planning team will be happy to help you.
Get in touch

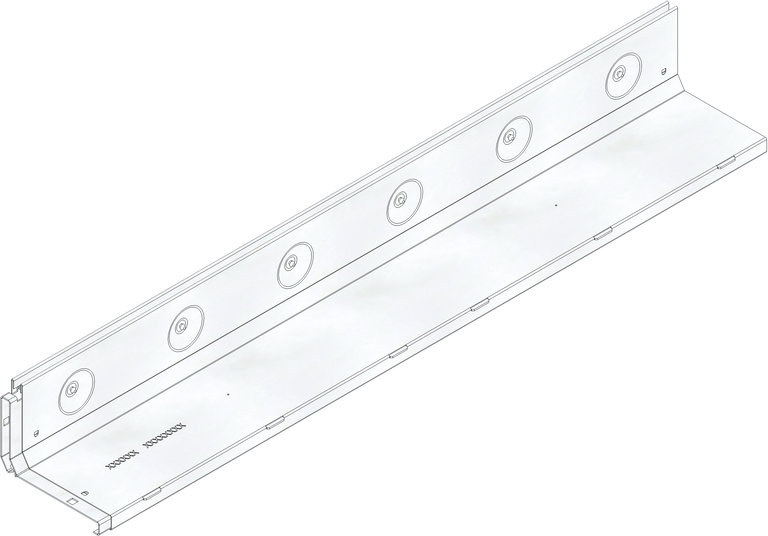

Product image
Technical drawing
Drawing (CAD)
Drawing
Data Sheet
Technical information and metrics
Article No.
32246
Length
1000 mm
Width
155 mm
Height
133 mm
Einlegetiefe
125 mm
Weight
4.71 kg
Material
Stainless steel 1.4301
Intake cross-section
100.0 cm²/m
Nominal size
100
Inlet opening
1000 x 10 mm
Regulations
EN 1433
Sales text
Slotted cover SW 10 mm, neck height 105 mm, stainless steel, asymmetric, with integrated, full-surface connector, cl. A 15, FASERFIX KS/ FASERFIX STANDARD/ RECYFIX PRO 100, 1 m
Product description
FASERFIX KS/ FASERFIX STANDARD/ RECYFIX PRO 100 - Slotted cover slot width 10 mm, neck height 105 mm, stainless steel CNS 1.4301 (AISI 304), asymmetric, with integrated, full-surface connection element, loading capacity A 15, length 1000 mm, item no. 32246
Packaging unit
80
Declaration of Performance
Tender Texts
Installation example
Pavement class A 15,
Pavement class B 125,
Pavement class C 250,
Asphalt class D 400,
Asphalt class D 400,
Pavement class D 400,
Asphalt class D 400,
Concrete class E 600,
Pavement class D 400,
Installation instructions
