Article No. 32797
SLOTTED COVERS 100, neck height 105 mm, class A 15
Asymmetrical, with integrated access cover left, SW 10 mm, stainless steel, 1,0 m
Available from stock
Questions?
Our experienced planning team will be happy to help you.
Get in touch

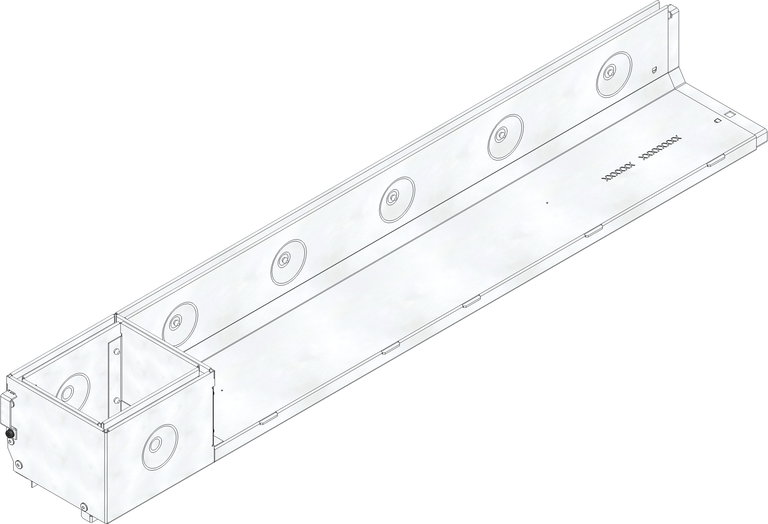

Product image
Technical drawing
Drawing
Drawing (CAD)
Data Sheet
Technical information and metrics
Article No.
32797
Length
1000 mm
Width
155 mm
Height
133 mm
Einlegetiefe
125 mm
Weight
5.41 kg
Material
Stainless steel 1.4301
Intake cross-section
120.0 cm²/m
Nominal size
100
Inlet opening
1000 x 10 mm
Regulations
in accordance with EN 1433
Sales text
Slotted cover SW 10 mm, neck height 105 mm, stainless steel, asymmetric, with integrated, full-surface connection element, cl. A 15, with integrated access cover left, FASERFIX KS/ FASERFIX STANDARD/ RECYFIX PRO 100, 1 m
Product description
FASERFIX KS/ FASERFIX STANDARD/ RECYFIX PRO 100 -Slotted cover slot width 10 mm, neck height 105 mm, stainless steel, asymmetric, with integrated, full-surface connection element, loading capacity A 15, with integrated access cover left, length 1000 mm, item no. 32797
Packaging unit
42
Declaration of Performance
Tender Texts
Installation example
Pavement class A 15
Pavement class B 125
Pavement class C 250
Pavement class C 250
Asphalt class D 400
Asphalt class D 400
Pavement class D 400
Asphalt class D 400
Concrete class E 600
Pavement class D 400
Installation instructions
