Article No. 32296
SLOTTED COVERS 100, neck height 105 mm, class A 15
Asymmetrical, with integrated access cover righ, SW 10 mm, stainless steel, 1,0 m
Available from stock
Questions?
Our experienced planning team will be happy to help you.
Get in touch
Product image

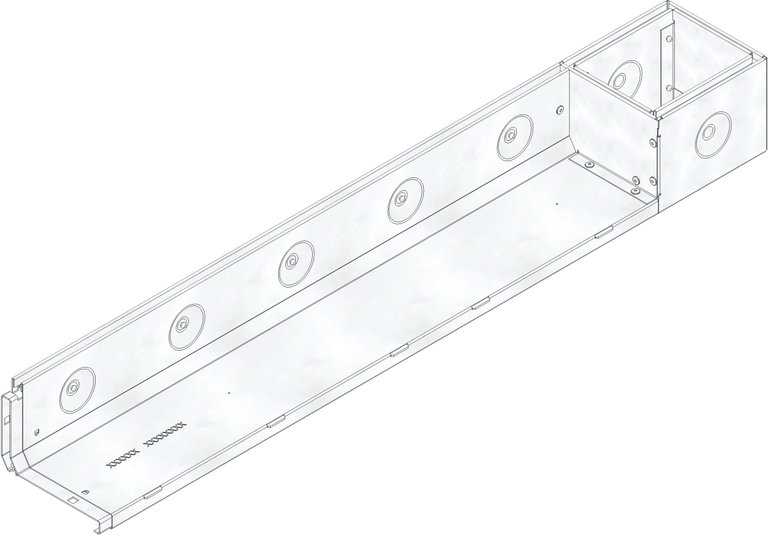

Technical drawing
Drawing
Drawing (CAD)
Data Sheet
Technical information and metrics
Article No.
32296
Length
1000 mm
Width
155 mm
Height
133 mm
Einlegetiefe
125 mm
Weight
5.46 kg
Material
Stainless steel 1.4301
Intake cross-section
120.0 cm²/m
Nominal size
100
Inlet opening
1000 x 10 mm
Regulations
in accordance with EN 1433
Sales text
Slotted cover SW 10 mm, neck height 105 mm, stainless steel, asymmetric, with integrated, full-surface connection element, cl. A 15, with integrated access cover right, FASERFIX KS/ FASERFIX STANDARD/ RECYFIX PRO 100, 1 m
Product description
FASERFIX KS/ FASERFIX STANDARD/ RECYFIX PRO 100 -slotted cover SW 10 mm, neck height 105 mm, stainless steel CNS 1.4301 (AISI 304), asymmetric, with integrated, full-surface connection element, loading capacity class A 15, with integrated access box right, length 1000 mm, item no. 32296
Packaging unit
42
Declaration of Performance
Tender Texts
Installation example
Pavement class A 15
Pavement class B 125
Pavement class C 250
Pavement class C 250
Asphalt class D 400
Asphalt class D 400
Pavement class D 400
Asphalt class D 400
Concrete class E 600
Pavement class D 400
Installation instructions
