Article No. 32304
SLOTTED COVERS 100, neck height 105 mm, class C 250
Acess cover asymmetrical, SW 12 mm, stainless steel, 0,5 m
Available from stock
Questions?
Our experienced planning team will be happy to help you.
Get in touch
Product image

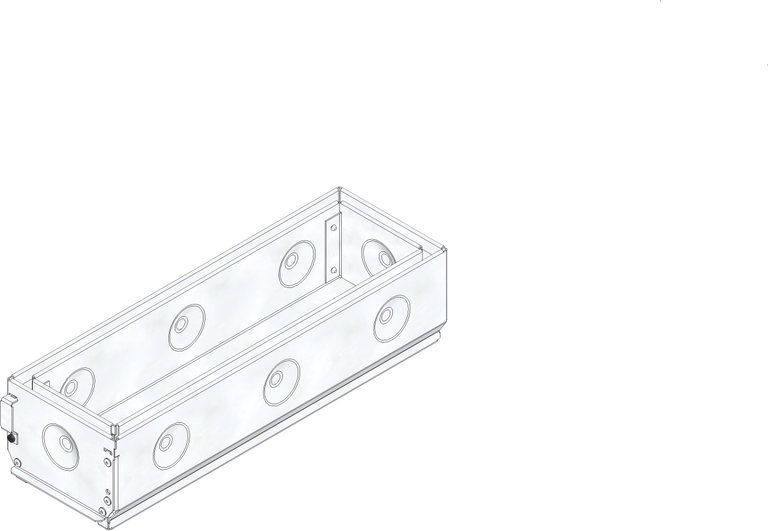

Technical drawing
Drawing (CAD)
Drawing
Data Sheet
Technical information and metrics
Article No.
32304
Length
500 mm
Width
163 mm
Height
133 mm
Einlegetiefe
126 mm
Weight
5.24 kg
Material
Stainless steel 1.4301
Intake cross-section
297.0 cm²/m
Nominal size
100
Inlet opening
500 x 12 mm
Material grating
Stainless steel 1.4301
Regulations
in accordance with EN 1433
Sales text
Access box SW 12 mm, neck height 105 mm, stainless steel, asymmetric, cl. C 250, FASERFIX KS/ FASERFIX STANDARD/ RECYFIX PRO 100, 0,5 m
Product description
FASERFIX KS/ FASERFIX STANDARD/ RECYFIX PRO 100 -Access box for slotted cover slot width 12 mm, neck height 105 mm, stainless steel CNS 1.4301 (AISI 304), asymmetric, loading capacity A 15 - C 250, length 500 mm, item no. 32304
Packaging unit
84
Declaration of Performance
