Article No. 32277
SLOTTED COVERS 100, neck height 105 mm, class C 250
Asymmetrical SW 12 mm, galvanised, 0,5 m
Available from stock
Questions?
Our experienced planning team will be happy to help you.
Get in touch

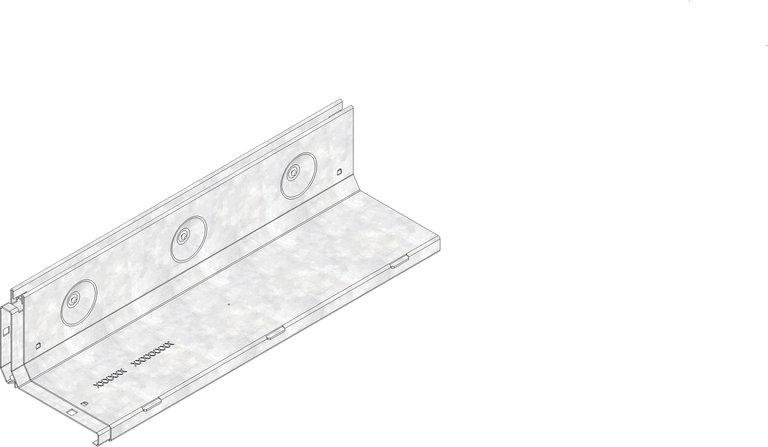

Product image
Technical drawing
Drawing (CAD)
Drawing
Data Sheet
Technical information and metrics
Article No.
32277
Length
500 mm
Width
156 mm
Height
134 mm
Einlegetiefe
126 mm
Weight
3.19 kg
Material
strip galvanized steel
Intake cross-section
120.0 cm²/m
Nominal size
100
Inlet opening
500 x 12 mm
Regulations
in accordance with EN 1433
Sales text
Slotted cover SW 12 mm, neck height 105 mm, galvanised, asymmetric, with integrated, full-surface connector, cl. C 250, FASERFIX KS/ FASERFIX STANDARD/ RECYFIX PRO 100, 0.5 m
Product description
FASERFIX KS/ FASERFIX STANDARD/ RECYFIX PRO 100 -Slotted cover slot width 12 mm, neck height 105 mm, galvanised, asymmetric, with integrated, full-surface connection element, loading capacity A 15 - C 250, length 500 mm, item no. 32277
Packaging unit
160
Declaration of Performance
Tender Texts
Installation example
Pavement class A 15,
Pavement class B 125,
Pavement class C 250,
Asphalt class D 400,
Asphalt class D 400,
Pavement class D 400,
Asphalt class D 400,
Concrete class E 600,
Pavement class D 400,
Installation instructions
